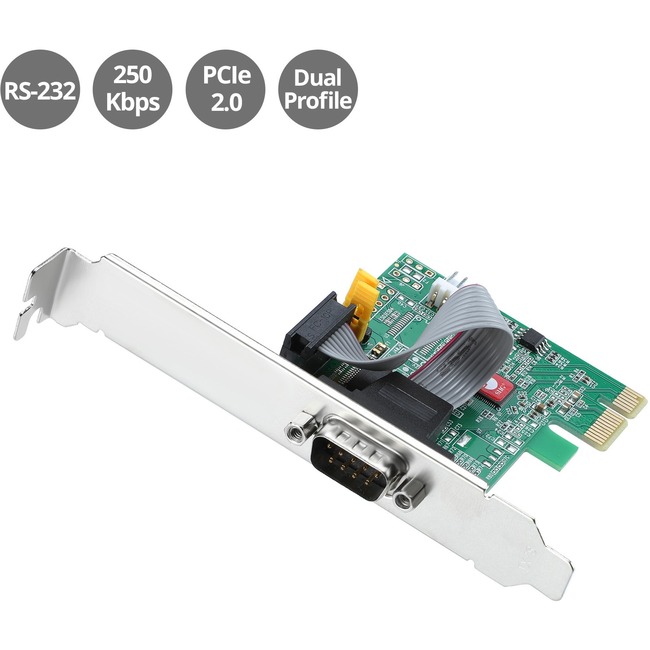

SIIG DP Cyber RS-232 1S PCIe Card - 250Kbps

Add one 16650 RS232 port to your PCI Express system

• Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
• One 16C650 UART serial port supports data transfer rate up to 250Kbps
• Compliant with PCI Express 2.0 Gen 1
• Single-lane (x1) PCI Express End-point Controller with PHY integrated
• Full serial modem control with hardware and software flow control
• Supports 5 6 7 8 and 9-bit serial formats
• Supports Even Odd None Space and Mark parity
• Supports on chip 256-byte FIFO buffers in transmit and receive path
• Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners table scanners POS displays and many more). Configurable via jumpers
• Supports PCI Bus Power Management Interface Specification Revision 1.2
• Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
• Installs into any PCI Express slot of any lane width
• Perfect solution to connect with POS system industrial testing and control device security system logistic management equipment printers scanners etc

• DP Cyber 1S PCIe Card
• Full Height Bracket
• 1 x Low Profile Bracket
• 1 x Y-Split Power Cable
• 2 x Voltage Jumper
• Software CD
• User Manual
