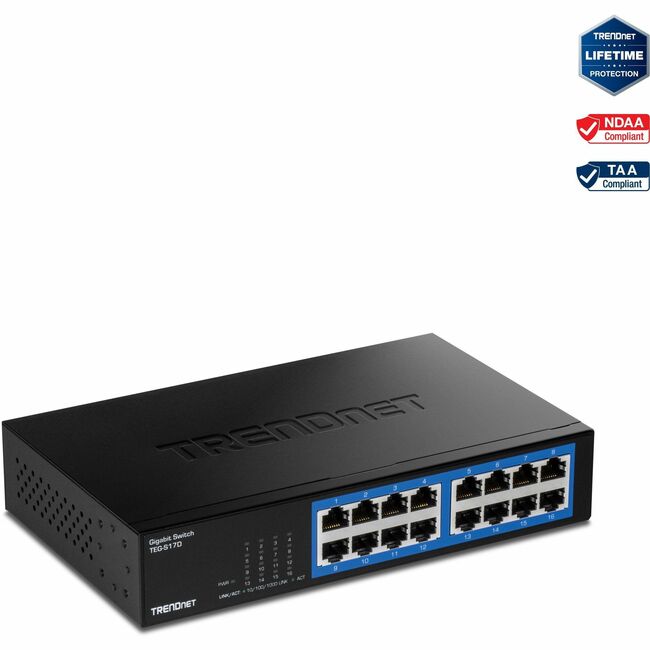

TRENDnet 16-Port Gigabit Desktop Switch, TEG-S17D, 16 x Gigabit RJ-45 Ports, 32Gbps Switching Capacity, Fanless Design, Metal Enclosure, Internal Power Supply, Lifetime Protection, Black - 16 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Compact, Desktop, Rack-mountable - Lifetime Limited Warranty
16 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Compact, Desktop, Rack-mountable - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Network (RJ-45) | Yes |
| Product Material | Metal |
| Total Number of Network Ports | 16 |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Form factor | Compact |
| Form factor | Desktop |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 4.3" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 2 |
| Length | 6.3" |
| Limited Warranty | Lifetime |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-S17D |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- DESKTOP DESIGN: Sturdy metal housing for greater installation flexibility and well-suited for desktop installations. Rackmount brackets are also included for easy installation with 1U rack installations
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- INTERNAL POWER SUPPLY: 100 - 240V AC 50/60 Hz 1A; Max. Consumption: 9.19W
- TRENDnet LIFETIME PROTECTION: The TEG-S17D 16-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
The 16-Port Gigabit Desktop Switch model TEG-S17D provides high bandwidth performance ease of use and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with fullduplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices and a 32Gbps switching capacity allows data traffic to flow smoothly reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
FEATURES | Plug and Play
Simply power up the switch and plug in connected devices
Housing Design
With a compact and sturdy metal housing design this switch is wellsuited for desktop or rackmount installations (brackets included).
LED Indicators
LEDs convey power link and activity
Ports
16 x Gigabit Ethernet ports
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Internal Power Supply
100~240VAC 50/60Hz internal universal switching power supply
Switching Capacity
32Gbps switching capacity
Fanless
Fanless design lowers energy consumption and eliminates operating noise |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-T |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3 |
| Package Contents | - 16-Port Gigabit Desktop Switch
- Quick Installation Guide
- Rack Mount Kit
- Power Cord (1.5m / 4.9 ft.)
|
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Power consumption | 9.19 W |
| Power source | Power Supply |
| Product Name | 16-Port Gigabit Desktop Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931140811 |
| Weight (Approximate) | 14.60 oz |
| Width | 1" |
