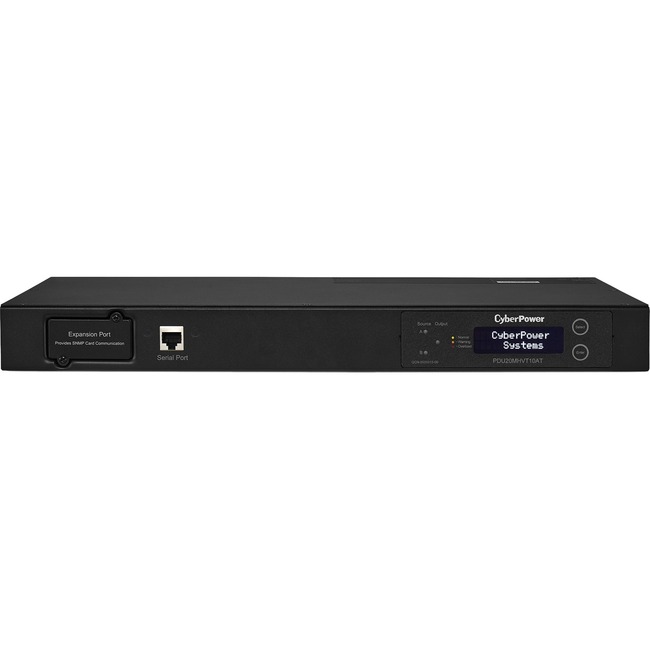

CyberPower PDU20MHVT10AT 200 - 240 VAC 20A Metered ATS PDU
New
CyberPower PDU20MHVT10AT 200 - 240 VAC 20A Metered ATS PDU - 10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
| $363.40 Retail $454.95 |
- 200V - 240V 20A ATS PDU with 8 IEC-320 C13 Outlets and 2 IEC-320 C19 Outlets. Dual NEMA L6-20P Input Plugs for Redundancy
- Metered Automatic Transfer Switching (ATS) to provide a redundant input power option
- Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
- SNMP/HTTP option slot for real-time monitoring and event logging of the ATS PDU. RMCARD202 & RMCARD203 sold separately.
- 1U Rugged, industrial-grade metal housing.
Subscribe & Save5%
| Buy Once $363.40 | |||
| Subscribe & Save$345.23 | |||
| Delivery Ferquency |
You may be also interested
$173.41
$290.16
$104.20
$159.95
$174.05
$260.00
$112.32
$145.00
$1,167.88
$1,974.96
$188.61
$329.95
$975.27
$1,130.00
$895.97
$1,242.00
$1,754.80
$316.48
$369.95
$586.48
$986.54
$351.23
$531.00
$1,140.89
$1,289.95
$154.17
$280.00
$206.42
$279.95
$1,504.84
$503.33
$744.00
$689.47
$890.00
$405.91
$600.00
$1,187.21
$1,800.00
CyberPower PDU20MHVT10AT 200 - 240 VAC 20A Metered ATS PDU - 10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
Product Specifications
| Mounting Orientation | Horizontal |
| Number of Cord/Cable | 2 |
| Plug/Connector Detail | 2 x NEMA L6-20P |
| Receptacle Detail | 2 x IEC 60320 C19 |
| Brand Name | CyberPower |
| Certifications & Standards |
|
| Compatibility |
|
| Cord Length | 10 ft |
| Country of origin | China |
| Depth | 9.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.8" |
| Input current | 20 A |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Management |
|
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | PDU20MHVT10AT |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | The CyberPower PDU20MHVT10AT a 10-outlet 1U rack mount metered auto transfer switch (ATS) PDU provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage the PDU will switch to the secondary power source to insure continuous operation. The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage power usage (kW) and hardware/LCD firmware versions. The PDU20MHVT10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately). The unit has a rugged industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard. |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Plug/Connector Type | NEMA L6-20P |
| Product Name | PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P |
| Product Series | Metered ATS PDU |
| Product Type | PDU |
| Protection Type | Over Voltage |
| Protection Type | Under Voltage Protection |
| Rack Height | 1U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 649532610860 |
| Weight (Approximate) | 11.46 lb |
| Width | 17.1" |
