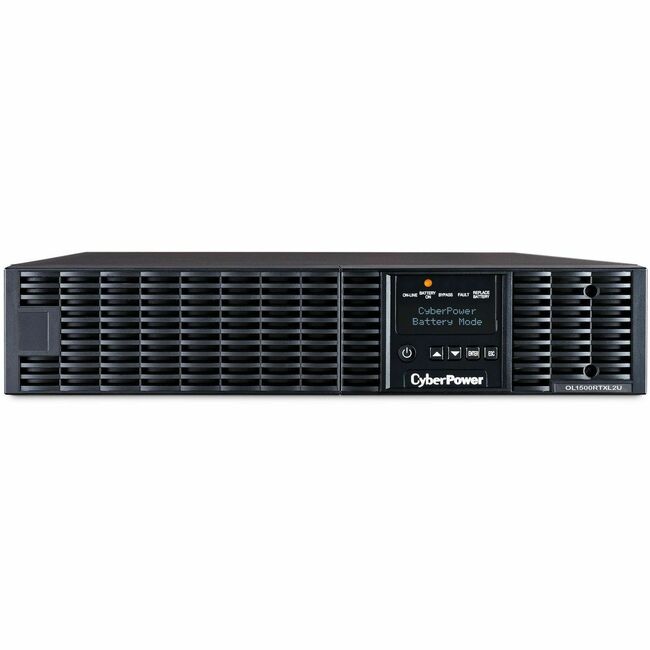

CyberPower OL1500RTXL2UN Smart App Online UPS Systems
| $1,276.26 Retail $1,659.00 |
- Capacity: 1500 VA / 1350 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
| Buy Once $1,276.26 | |||
| Subscribe & Save$1,212.45 | |||
| Delivery Ferquency |
1500VA/1350W, 100 - 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Product Specifications
| Directly Connected Equipment Guarantee | $400000Lifetime |
| Energy Saving | ECO Mode Efficiency >95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Overload Protection | Yes |
| Receptacle Detail | 8 x NEMA 5-15R |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Waveform Type | Sine Wave |
| Additional Information |
|
| Alarm | Low Battery |
| Alarm | UPS Fault |
| Alarm | Overload |
| Alarm | Battery Mode |
| Application/Usage | Mission Critical Equipment |
| Application/Usage | Network Equipment |
| Backup/Run Time (Full Load) | 3.40 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Battery capacity | 9000 mAh |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Battery Size | 12V |
| Brand Name | CyberPower |
| Certifications & Standards |
|
| Country of origin | China |
| Dataline Protection | RJ-11 |
| Dataline Protection | RJ-45 |
| Depth | 16.9" |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Height | 3.5" |
| Input frequency | 70 Hz |
| Input voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 1500 VA |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | OL1500RTXL2UN |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | Prevent business interruptions and safeguard mission-critical enterprise network equipment. The CyberPower OL1500RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel Smart Battery Management charging technology and energy-saving GreenPower UPS™ ECO Mode. The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser command line interface (CLI) or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output. With a $400000 lifetime connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to high quality. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP/HTTP Remote Monitoring |
| Number of Batteries | 3 |
| Output voltage | 125 V AC |
| Output voltage | 100 V AC |
| Output voltage | 115 V AC |
| Output voltage | 110 V AC |
| Package Contents |
|
| Plug/Connector Type | NEMA 5-15P |
| Product color | Black |
| Product Name | OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY |
| Product Series | Smart App Online UPS |
| Product Type | Dual Conversion Online UPS |
| Protection Type | EMI / RFI |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-15R |
| Software Included | PowerPanel® Business |
| Sound Emission | 38 dB(A) |
| Status Indicators |
|
| Surge energy rating | 1780 J |
| Thermal Dissipation | 140.09 W |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 4 Hour |
| UPC Alternates | 649532611782 649532620968 818240035023 |
| Weight (Approximate) | 39.60 lb |
| Width | 17" |
