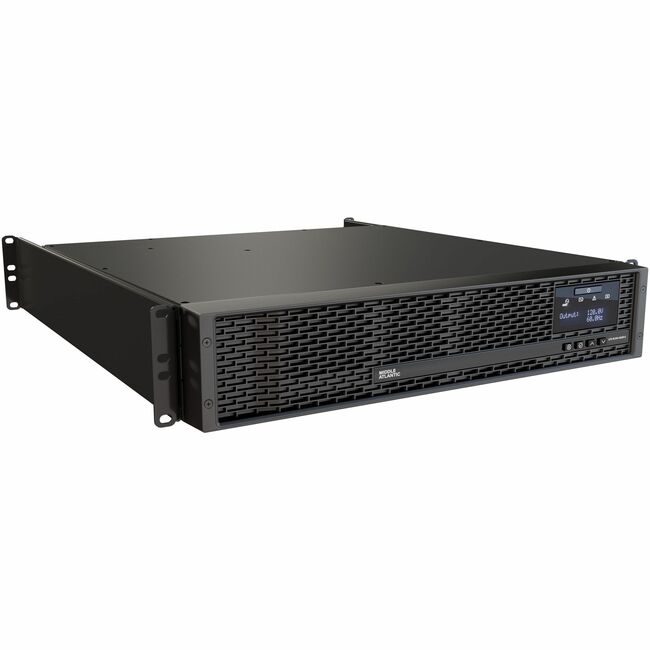

Middle Atlantic NEXSYS 1000VA Rack-mountable UPS - 2U Rack-mountable - AVR - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - LCD Display
2U Rack-mountable - AVR - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - LCD Display
| DC System Voltage | 36 V DC |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (W) | 900 W |
| Waveform Type | Pure Sine Wave |
| Additional Warranty Information | 2 Years Battery |
| Application/Usage | Bank |
| Application/Usage | Desktop |
| Brand Name | Middle Atlantic |
| Country of origin | China |
| Depth | 16" |
| Display | LCD |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 1000 VA/900 W |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-RLNK-1000R-8 |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed engineered and built for AV. It's one thing to say it it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. - 1000VA
- 15 Amp
- 8 Outlets with Individual Control
- An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
- Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
- The battery is already connected so just plug it in
- Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
- "NEXSYS alert me when...". Set reminders or notifications for things like battery replacement etc. via email or on the UPS
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required
- All UPSs include a 6' (1.8m) IEC power cord
- Name address and date of birth please? Easily locate the IP MAC address and device name via the front LCD screen. You can even see the battery installation date.
- Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment especially the most sensitive equipment
- Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
- Swap it like it's hot. Hot swappable battery from the front access panel for easy service without disrupting the system
- RackLink™ Remote Management Built-In. The NEXSYS UPS is RackLink enabled out of the box and discoverable on the RackLink Discovery Tool on PC Apple or Android devices.
- Included RS232 port for control
- 2 x dry contact ports for alerts
- 1 x contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold
- 1 x contact is defined to alert users when the battery level is low based on usage with customizable thresholds
- Energy Star Certified
|
| Maximum Operating Temperature | 104°F (40°C) |
| Output voltage | 110 V AC |
| Output voltage | 127 V AC |
| Package Contents | - 1000VA Rack-mountable UPS
- 6' (1.8m) IEC Power Cord
- Network Card
|
| Plug/Connector Type | NEMA 5-15P |
| Product color | Black |
| Product Line | NEXSYS |
| Product Name | NEXSYS 1000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-15R |
| Weight (Approximate) | 44.09 lb |
| Width | 19" |
