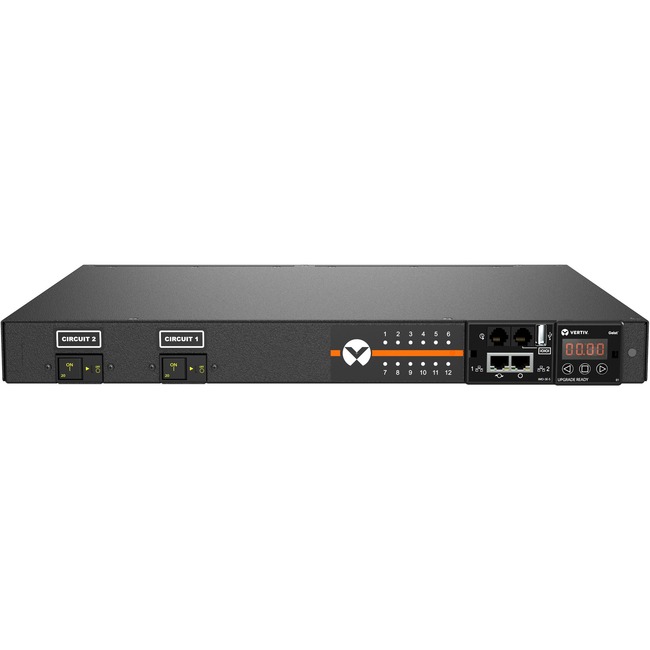

Vertiv Geist Switched Rack PDU - 1U Rack| 30A| C13/C19| L6-30P| Horizontal PDU - Vertiv Geist Upgradeable Switched Rack Power Distribution Unit| 30A| 240V| 1U Rack Horizontal PDU| (12) Combination Outlets C13/C19| NEMA L6-30P| 4.9kW| Outlet Level Monitoring and Management| UL-Listed and TAA-Compliant (VP53100)
Vertiv Geist Upgradeable Switched Rack Power Distribution Unit| 30A| 240V| 1U Rack Horizontal PDU| (12) Combination Outlets C13/C19| NEMA L6-30P| 4.9kW| Outlet Level Monitoring and Management| UL-Listed and TAA-Compliant (VP53100)
| Modem (RJ-11) | No |
| Mounting Orientation | Horizontal |
| Number of Cord/Cable | 1 |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Power Rating (Watt) | 4900 W |
| Receptacle Detail | 12 x Combination C13/C19 |
| Brand Name | Geist |
| Certifications & Standards | - UL
- c-UL Listed 60950
- IP67
|
| Cord Length | 10 ft |
| Country of origin | United States |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 17" |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Length | 12" |
| Limited Warranty | 3 Year |
| Management | - DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- Syslog
- TACACS+
SNMP:
|
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP53100 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Geist Switched Rack PDU VP53100 is a 30A 208V 1U horizontal rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP53100 features 12 Combination Outlet C13 / C19receptacles and a NEMA L6-30P plug with a 10ft cord providing 4.9kW in power capacity. This Switched rPDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. It also supports Visible Light Communication (VLC) technology so you can view complete power usage data from a mobile device with the Vertiv rPDU Scanner application. The IMD includes ports for serial communication and environmental monitoring and dual ethernet ports. Simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. All Vertiv Geist Switched PDUs are UL-Listed meeting an important requirement for data centers and each unit undergoes individual testing for functionality to ensure your network is powered by a reliable power distribution unit. More from the Manufacturer |
| Mount Type | Cabinet-mountable |
| Mount Type | Rack-mountable |
| Package Contents | - rPDU 12-Outlets PDU
- 12ft / 3.6m Cable
|
| Plug/Connector Type | NEMA L6-30P |
| Product color | Black |
| Product Model | MNS3E1R6-12CF18-3TL6A0H10-S |
| Product Name | GU VP53100 PDU |
| Product Series | rPDU |
| Product Type | PDU |
| Protection Type | Overcurrent Protection |
| Rack Height | 1U |
| Receptacle Type | Combination C13/C19 |
| UPC Alternates | 767041032147 |
| Weight (Approximate) | 14 lb |
| Width | 1.7" |
