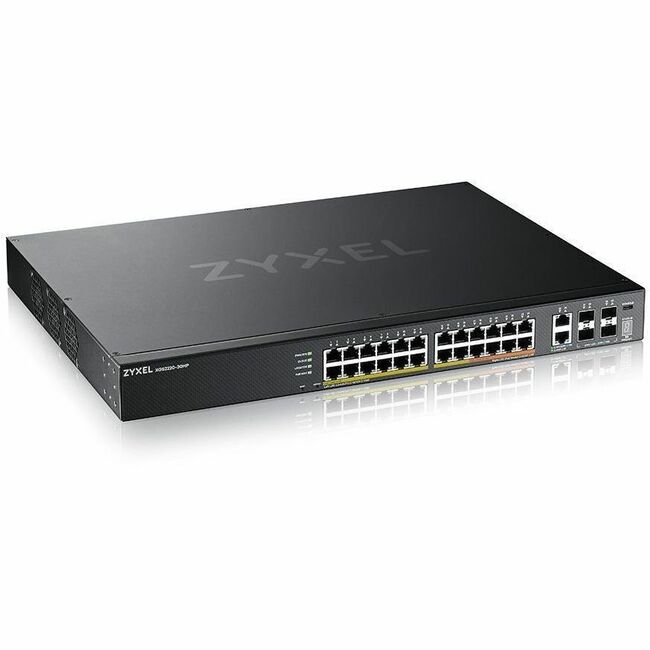

ZYXEL 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W) - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 477 W Power Consumption - 400 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable - Lifetime Limited Warranty
24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 477 W Power Consumption - 400 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable - Lifetime Limited Warranty
| Number of Total Expansion Slots | 4 |
| PoE Budget | 400 W |
| Total Number of Network Ports | 24 |
| Brand Name | ZYXEL |
| Depth | 13" |
| Environmental Certification | RoHS |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Website Address | http://www.us.zyxel.com |
| Marketing Information | The XGS2220 Series is a family of Layer 3 access Switch that consists of six models including PoE Non-PoE and fiber options. In addition to four 10G SFP+ uplink all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity. The fiber option XGS2220-30F provides 24 SFP port all serving the purpose to achieve business connectivity based on the flexibility of variety option of media interfaces and make itself an ideal choice for increasing business productivity. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature offering near silence while the Switch is in operation.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers network storages or other high-speed network devices with either 10G copper or fiber connection. In addition the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP video conference IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast IGMP snooping Multicast VLAN Registration (MVR) provide hotels businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information accompanied with condensed function menu helps you manage and monitor the system with ease. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-T |
| Network Technology | 100/1000Base-T |
| Network Technology | 10GBase-X |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.11ac |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.11ax |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3an |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1ad |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1D |
| Package Contents | - 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W)
- Power Cord
- Rack Mounting Kit
|
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| Power consumption | 477 W |
| Power source | Power Supply |
| Product Name | 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W) |
| Product Series | XGS2220 |
| Product Type | Layer 3 Switch |
| UPC Alternates | 760559129583 |
| Weight (Approximate) | 9.59 lb |
| Width | 17.4" |
