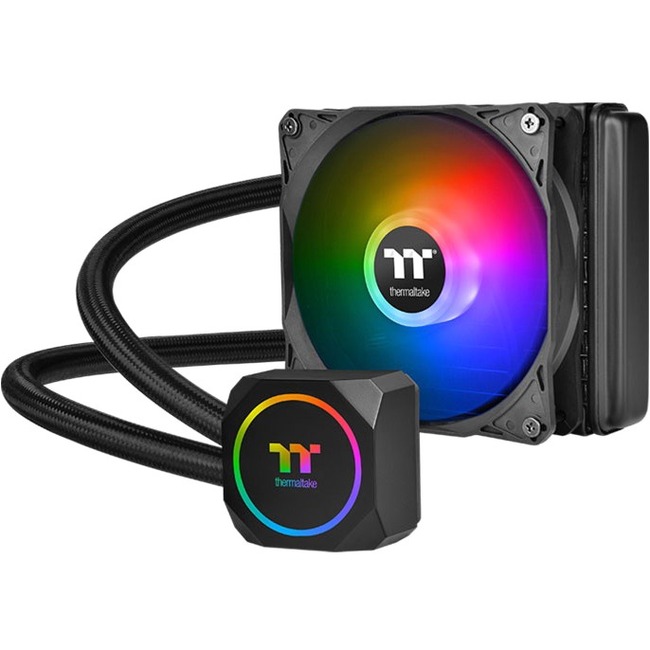

Thermaltake TH120 ARGB Sync AIO Liquid Cooler - 4.72" Maximum Fan Diameter - 443.4 gal/min Maximum Airflow - 1500 rpm - 28.2 dB(A) Noise - Liquid Cooler Cooler - 2510-3 Pin, 5 V ARGB header-3 Pin - Socket LGA-1700, Socket LGA-1200, Socket H LGA-1156, Socket H2 LGA-1155, Socket H4 LGA-1151, Socket H3 LGA-1150, Socket FM2, Socket FM1, Socket AM4, Socket AM3+, Socket AM3 PGA-941, ... Compatible Processor Socket - ARGB LED - Processor, Motherboard
4.72" Maximum Fan Diameter - 443.4 gal/min Maximum Airflow - 1500 rpm - 28.2 dB(A) Noise - Liquid Cooler Cooler - 2510-3 Pin, 5 V ARGB header-3 Pin - Socket LGA-1700, Socket LGA-1200, Socket H LGA-1156, Socket H2 LGA-1155, Socket H4 LGA-1151, Socket H3 LGA-1150, Socket FM2, Socket FM1, Socket AM4, Socket AM3+, Socket AM3 PGA-941, ... Compatible Processor Socket - ARGB LED - Processor, Motherboard
| Compatible Processor Socket | Socket FM2 |
| Compatible Processor Socket | Socket AM4 |
| Compatible Processor Socket | Socket H4 LGA-1151 |
| Compatible Processor Socket | Socket LGA-1200 |
| Compatible Processor Socket | Socket AM3+ |
| Compatible Processor Socket | Socket AM2 PGA-940 |
| Compatible Processor Socket | Socket LGA-1700 |
| Compatible Processor Socket | Socket AM3 PGA-941 |
| Compatible Processor Socket | Socket FM1 |
| Compatible Processor Socket | Socket H2 LGA-1155 |
| Compatible Processor Socket | Socket H LGA-1156 |
| Compatible Processor Socket | Socket H3 LGA-1150 |
| Compatible Processor Socket | Socket AM2+ PGA-940 |
| Connectors | 2510-3 Pin |
| Connectors | 5 V ARGB header-3 Pin |
| Cooler Type | Liquid Cooler |
| Fan Depth | 0.98" |
| Fan Speed (Max) | 1500 rpm |
| LED Color | ARGB |
| Material Details | - Water Block: Copper
- Tube: Rubber
|
| Maximum Air Pressure | 1.31mmH2O |
| Maximum Airflow | 443.4 gal/min |
| Noise Levels | 28.2 dB(A) |
| Radiator Depth | 1.06" |
| Radiator Height | 6.02" |
| Radiator Width | 4.72" |
| Rated Current | 380 mA |
| Application/Usage | Motherboard |
| Application/Usage | Processor |
| Brand Name | Thermaltake |
| Country of origin | China |
| Limited Warranty | 2 Year |
| Manufacturer | Thermaltake Technology Co. Ltd |
| Manufacturer Part Number | CL-W285-PL12SW-B |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Marketing Information | TH120 is an all-in-one 120mm liquid cooler that supports 5V RGB compatible motherboards. TH120 ARGB Sync AIO Liquid Cooler Thermaltake TH120 ARGB Sync is an all-in-one liquid cooler which includes a 120mm powerful high static pressure fans and a high performance radiator along with a water block 16.8M RGB color lumination with pre-set lighting modes via the smart fan controller or synchronize with motherboard RGB software for stunning RGB colors. - Aura Addressable Header
- Digital Pin Header
- JRAINBOW Header
- Addressable RGB LED Header
- Addressable RGB LED Header
Smart Fan Controller The ARGB controller allows users to switch LED modes LED colors and lighting speeds when using a motherboard without a 5V addressable RGB header. Users can switch between flow ripple pulse blink wave full light RGB spectrum and off modes with various colors and LED speed options. 120mm ARGB Radiator Fan High-static pressure fan design delivers impressive cooling performance. High Efficiency Radiator Specially designed 120mm large surface radiator increases surface delivering exceptional heat dissipation. High Performance Waterblock The high performance copper base plate accelerates heat conductivity. Highly Reliable Pump The high quality and reliable pump enables maximum water circulation keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore no refill is required. Simple Setup Featuring superb cooling performance the TH120 ARGB Sync provides an easy installation and maintenance-free operation requiring only the minimum amount of space in the chassis. |
| Number of Fans | 1 |
| Product Line | TH120 ARGB Sync |
| Product Name | TH120 ARGB Sync AIO Liquid Cooler |
| Product Type | Cooling Fan/Radiator/Water Block/Pump |
| UPC Alternates | 841163079645 |
