Vaddio OneLINK System for Sony & Panasonic HDMI Cameras - 1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable
1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable
| Network (RJ-45) | Yes |
| Receiver Depth | 6" |
| Receiver Height | 1.72" |
| Receiver Weight (Approximate) | 1.55 lb |
| Receiver Width | 8.38" |
| Transmitter Depth | 1.24" |
| Transmitter Height | 3.86" |
| Transmitter Weight (Approximate) | 8.85 oz |
| Transmitter Width | 4.31" |
| Brand Name | Vaddio |
| Connectivity technology | Wired |
| Country of origin | United States |
| Form factor | Wall Mountable |
| Graphics Modes | 4K |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 999-9530-000 |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | OneLINK™ Digital Camera Interface | Vaddio™ OneLINK System for Sony® and Panasonic® HDMI Cameras | HDBaseT™ Video Power and Control Extension over a Single Cat-5e or Better Cable
Part Numbers: 999-9530-000 North America 999-9530-001 International
Vaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video power network and RS232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt this new OneLINK system allows for easier simpler and faster installations. The OneLINK system sends and regulates power to the camera provides a bidirectional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 and up to 2160p/30 for the future.

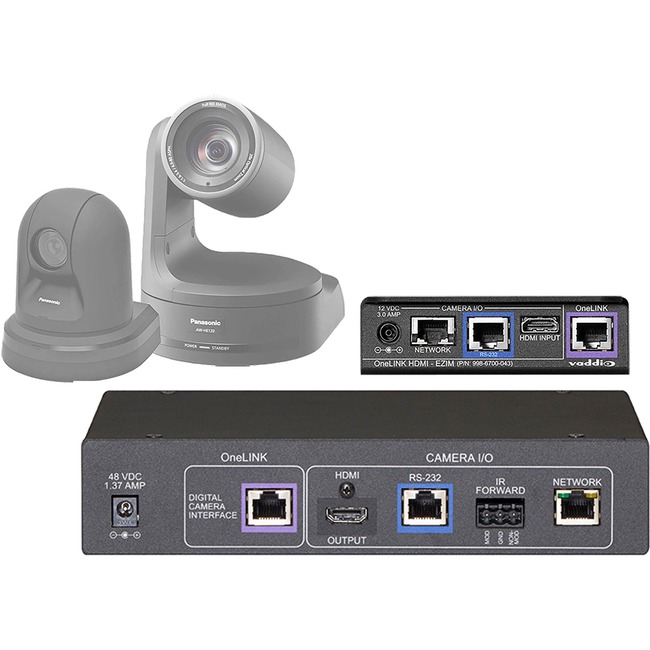

The system consists of the small OneLINK EZIM (EZCamera™ Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the included Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable a power cable and two Cat-5e cables for network and RS-232. The Thin Profile Wall Mount can be mounted directly to a 2- gang sized electrical box for conduit installations or directly to the dry wall with wall anchors.
From one end to the other the OneLINK system provides system integrators with an easy to install simple and elegant single cable camera extension solution which exemplifies Vaddio's main tenet; The Art of Easy. |
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 3840 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - 1 x OneLINK HDMI Interface
- 1 x OneLINK EZIM for the Camera Side
- 1 x 48 VDC 1.36 Amp Switching Power Supply
- 1 x AC Cord Set
- 1 x 12" (305mm) HDMI Cable
- 1 x 12" (305mm) Sony 12 VDC Power Cable
- 1 x 12" (305mm) Panasonic 12 VDC Power Cable
- 1 x 12" (305mm) Cat-5e Patch Cable for Network
- 1 x 12" (305mm) RJ-45 to 8-Pin Mini Din for RS-232
- 1 x Thin Profile Wall Mount (black) that fits Sony SRG120DH SRG-300H and Panasonic AW-HE40H
- 2 x 6-32 x .188" Black Phillips Flat Head Screws
|
| Product Line | OneLINK |
| Product Name | OneLINK System for Sony & Panasonic HDMI Cameras |
| Product Type | Video Extender Transmitter/Receiver |
| Supported video modes | 2160p |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 840077502072 |
