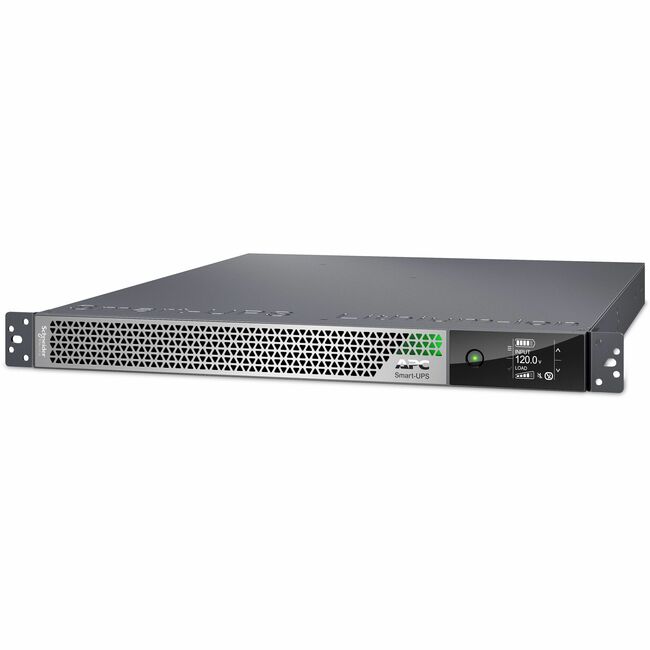

APC by Schneider Electric Smart-UPS Ultra 3000VA Tower/Rack Convertible UPS - 1U Tower/Rack Convertible - AVR - 120 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 5 x NEMA L5-20R
1U Tower/Rack Convertible - AVR - 120 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 5 x NEMA L5-20R
| DC System Voltage | 50 V DC |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (W) | 2880 W |
| Output Frequency | 60 Hz |
| Receptacle Detail | 5 x NEMA L5-20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - -49°F (-45°C) |
| Waveform Type | Sine Wave |
| Application/Usage | Medical |
| Application/Usage | Retail and Wholesale |
| Application/Usage | Server |
| Application/Usage | Voice/Data Network |
| Application/Usage | Light Industrial Application |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Brand Name | APC by Schneider Electric |
| Depth | 22.1" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Tower/Rack Convertible |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Limited Warranty | 5 Year |
| Load Capacity | 3000 VA/2880 W |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL3KRM1UC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | Ultra-high power density On-Line power protection with Lithium-ion batteries and scalable runtime options Smart-UPS Ultra provides ultra-high density On-Line power protection with Lithium-ion batteries for servers voice / data networks retail medical labs and light industrial applications. Capable of supporting loads from up to 3kW with up to 2.4X the power density this compact UPS family is consumes half the U space of comparable models. Versatile mounting options include rack and tower orientations and flexible wall ceiling and under desk mounting. The Smart-UPS Ultra comes with a standard internal battery or available external battery packs for scalable runtime options. Smart-UPS Ultra provides remote monitoring and management options via the EcoStruxture Ready Web Portal or Network Management for EcoStruxure IT Software & Services. More from the Manufacturer |
| Maximum Operating Temperature | 104°F (40°C) |
| Package Contents | - Smart-UPS Ultra 3000VA Tower/Rack Convertible UPS
- Country-Specific Detachable Power Cord
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Support Rails
- RJ45 Cable
- USB Cable
- Warranty Card
|
| Plug/Connector Type | NEMA L5-30P |
| Product color | Silver |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 3000VA Tower/Rack Convertible UPS |
| Product Type | Dual Conversion Online UPS |
| Rack Height | 1U |
| Receptacle Type | NEMA L5-30R |
| Receptacle Type | NEMA L5-20R |
| Sound Emission | 55 dB(A) |
| Status Indicators | Multifunction LCD |
| UPC Alternates | 731304435532 |
| Weight (Approximate) | 35.05 lb |
| Width | 17" |
