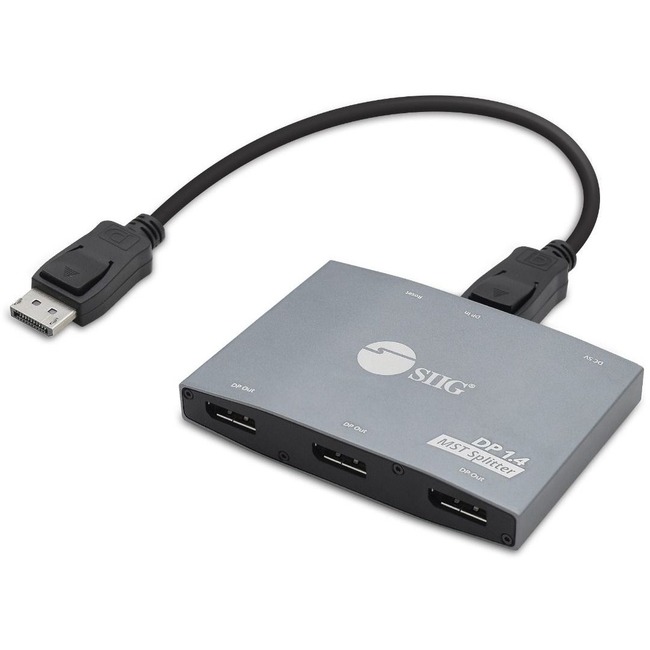

SIIG 1x3 DisplayPort 1.4 to DisplayPort MST Splitter
| $87.10 Retail $179.99 |
- Boost your productivity by connecting three DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technology
- Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display
- Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc.
- Compatible with DisplayPort 1.4 MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
- Supports UHD video resolutions up to 8K (7680x4320@30Hz) and 7.1-ch surround audio
- Reset button allows re-detection of all the displays if any
| Buy Once $87.10 | |||
| Subscribe & Save$82.75 | |||
| Delivery Ferquency |
DP 1.4 MST Video Splitter Hub, Triple DP outputs, Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), 32.4Gbps, no driver required, Dual 4K@60Hz or Triple 4K (4K@30Hz or 1x 4K@60Hz + 2x 4K@30Hz), supports DP 1.2 with limited performance, Full Windows compatibility, Mac OS supports mirror only, TAA Compliant
Product Specifications
| Number of DisplayPort Inputs | 1 |
| Number of DisplayPort Outputs | 3 |
| Product Material | Aluminum |
| Brand Name | SIIG |
| Country of origin | Taiwan |
| Depth | 4.1" |
| Environmental Certification | RoHS 2 |
| Environmentally Friendly | Yes |
| Height | 0.7" |
| Limited Warranty | 3 Year |
| Manufacturer | SIIG Inc |
| Manufacturer Part Number | CE-DP0S11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | DP 1.4 MST Video Splitter Hub Triple DP outputs Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) 32.4Gbps no driver required Dual 4K@60Hz or Triple 4K (4K@30Hz or 1x 4K@60Hz + 2x 4K@30Hz) supports DP 1.2 with limited performance Full Windows compatibility Mac OS supports mirror only TAA Compliant Features Splits a single DisplayPort 1.4 output source to three DisplayPort monitors with Mirror Extended and Panoramic video wall display modes High Performance Video Resolution Display Modes Multiple Connectivity Port Maximum Compatibility Aluminum Housing Design Applications
1. Make sure your system requirement has a DisplayPort video output specification 1.4 and supports Multi Stream Transport (MST). If you are not sure please check with the video card or system manufacture |
| Maximum Video Resolution | 7680 x 4320 |
| Package Contents |
|
| Product Name | 1x3 DisplayPort 1.4 to DisplayPort MST Splitter |
| Product Type | Signal Splitter |
| UPC Alternates | 662774045436 |
| Weight (Approximate) | 4.16 oz |
| Width | 2.9" |
