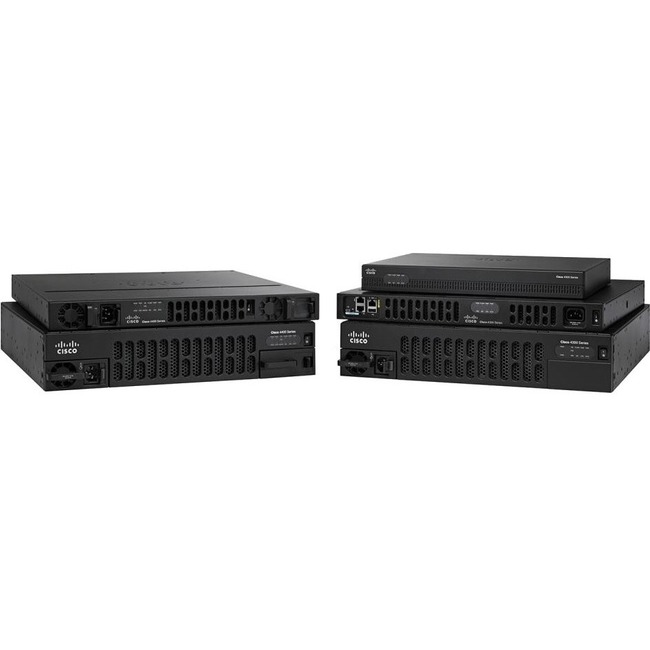

Cisco 4431 Router - 4 Ports - 4 RJ-45 Port(s) - Management Port - 8 - 4 GB - Gigabit Ethernet - 1U - Rack-mountable, Wall Mountable - 90 Day
4 Ports - 4 RJ-45 Port(s) - Management Port - 8 - 4 GB - Gigabit Ethernet - 1U - Rack-mountable, Wall Mountable - 90 Day
| Compatible Rack Unit | 1U |
| Maximum Memory Supported | 16 GB |
| Number of Total Expansion Slots | 8 |
| Brand Name | Cisco |
| Certifications & Standards | Safety:
- UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- EN 60950-1
- AS/NZS 60950-1
- IEC 60950-1
- GB-4943
EMC:
- 47 CFR Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI V-3
- CNS 13438
- EN 300-386
- EN 61000 (Immunity)
- EN 55024 CISPR 24
- EN50082-1
- KN22 KN24
Telecom: - TIA-968-B
- CS-03
- ANSI T1.101
- ITU-T G.823 G.824
- IEEE 802.3
- RTTE Directive
|
| Depth | 20" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Expansion Slot Type | Integrated Services Card (ISC) |
| Expansion Slot Type | Network Interface Module (NIM) |
| Flash memory | 8 GB |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 90 Day |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | ISR4431/K9 |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links including Multiprotocol Label Switching (MPLS) VPNs and the Internet. |
| Memory Technology | DRAM |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 4 |
| Product Model | 4431 |
| Product Name | 4431 Router |
| Product Series | 4000 |
| Product Type | Router |
| Standard Memory | 4 GB |
| Token Ring Port | No |
| UPC Alternates | 882658698996 |
| USB | Yes |
| Weight (Approximate) | 18.50 lb |
| Width | 17.3" |
