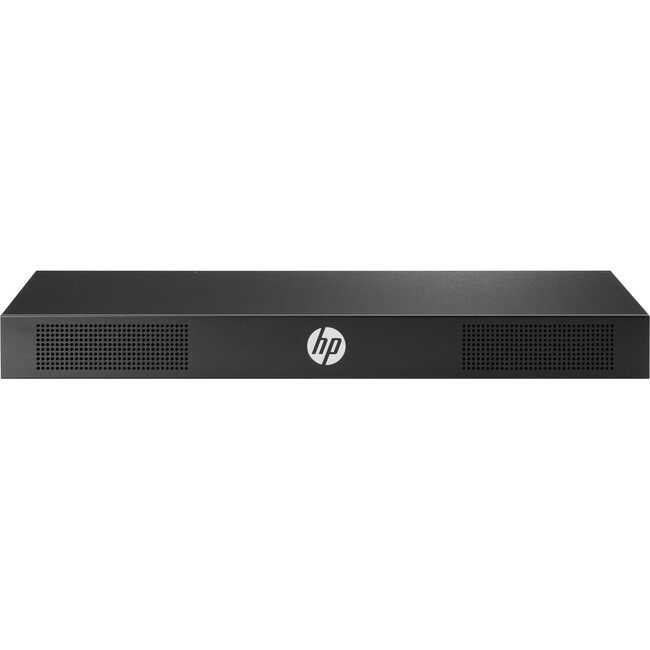

HPE 0x2x16 G3 KVM Console Switch - 16 Computer(s) - 2 Local User(s) - 1280 x 1024 - 19 x Network (RJ-45) - 8 x USB2 x VGA - Rack-mountable - 1U
16 Computer(s) - 2 Local User(s) - 1280 x 1024 - 19 x Network (RJ-45) - 8 x USB2 x VGA - Rack-mountable - 1U
| Brand Name | HPE |
| Depth | 6.5" |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | AF652A |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | HP KVM Analog Console Switches
Looking for a simple and intuitive solution that allows you to access and manage servers across your entire network?
HP KVM Analog Console Switches allow you to view and manage up to 256 rackmount servers across your data center through a single user interface. HP KVM Analog Console Switches utilize a local On-Screen Display (OSD) interface accessed through a rack console such as the HP LCD8500 which provides intuitive menus for accessing each attached server or serial managed device. HP's G3 KVM Analog Console Switches support an optional USB Remote Access Key that allows you to upgrade to KVM-over-IP functionality providing remote access and management via the On-Board Web Interface (OBWI). New G3 models also support HP Power Discovery Services and Location Discovery Services when connected to the appropriate power distribution unit and KVM rack console.
HP KVM Analog Console Switches are available in 8 and 16-Port versions. Standard rack mounting of the KVM Analog Console Switch will share 1U (1.75") of front panel rack space with the rack console. However each model can also be mounted in a "zero U" profile by mounting in the side rails of the rack. |
| Maximum Video Resolution | 1280 x 1024 |
| Number of Computers Supported | 16 |
| Number of Network (RJ-45) Ports | 19 |
| Number of USB Ports | 8 |
| Number of VGA Ports | 2 |
| Packaged Quantity | 1 |
| Product Name | 0x2x16 G3 KVM Console Switch |
| Product Type | KVM Switchbox |
| Rack Height | 1U |
| UPC Alternates | 641753361101 657379390913 800100225682 818214618269 818240023884 888182748930 |
| USB | Yes |
| Weight (Approximate) | 4.60 lb |
| Width | 17" |
