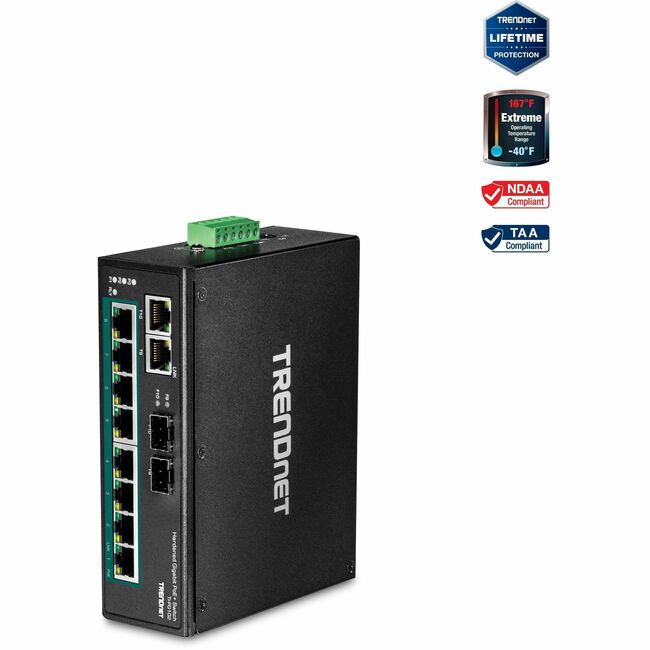

TRENDnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 8 x Gigabit PoE+ Ports, DIN-Rail Mount, 2 x SFP Slots, 240W PoE Power Budget, Network Switch, IP30, QoS, Lifetime Protection, Black, TI-PG102 - 10-Port Industrial Gigabit PoE+ DIN-Rail Switch
10-Port Industrial Gigabit PoE+ DIN-Rail Switch
| Modular | Yes |
| Total Number of Network Ports | 10 |
| Country of origin | Taiwan |
| Depth | 10" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Height | 3" |
| Layer Supported | 2 |
| Length | 6.1" |
| Limited Warranty | Lifetime |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG102 |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - 8 x Gigabit PoE+ ports & 2 x Gigabit RJ-45 / SFP shared ports
- 240 W PoE power budget
- 20 Gbps switching capacity
- Power supply sold separately (models: TI-S24048 / 48VDC3000)
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Operating temperature range of -40° - 75°C (-40° - 167°F)
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch model TI-PG102 has eight gigabit PoE+ ports with a 240 W PoE power budget plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.
PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features dual redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration shock and operate within a wide temperature range of -40 - 75°C (-40 - 167°F).
Package Contents:
- TI-PG102
- Quick Installation Guide
-Removable terminal block
- DIN-Rail and wall mount kit More from the Manufacturer |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Package Contents | - 10-Port Industrial Gigabit PoE+ DIN-Rail Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-rail and Wall Mount Kit
|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Power source | Power Supply |
| Product Condition | New |
| Product Name | 10-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931160932 |
| Weight (Approximate) | 1.43 lb |
| Width | 5" |
