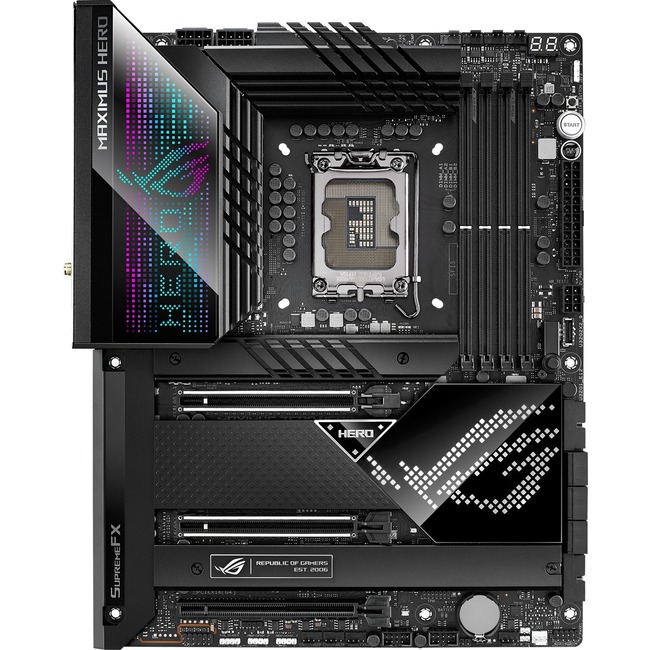

Asus ROG Maximus Z690 Hero Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 6 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 6200 MHz |
| Number of Memory Slots | 4 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i7 |
| S/PDIF | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG MAXIMUS Z690 HERO |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Intel® Z690 ATX motherboard with 20+1 power stages DDR5 Five M.2 USB 3.2 Gen 2x2 front-panel connector Dual Thunderbolt™ 4 PCIe® 5.0 Onboard WiFi 6E and Aura Sync RGB lighting - Socket LGA 1700 for 12th Gen Intel® Core™ Pentium® Gold and Celeron® processors
- Intelligent Control: ASUS-exclusive tools including AI Overclocking AI Cooling AI Networking and Two-Way AI Noise-Cancelation for easy configuration
- Robust Power Solution: 20+1 teamed power stages rated for 90 A ProCool II power connectors MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover high-conductivity thermal pad triple M.2 heatsinks and two M.2 backplates plus ROG Water-Cooling Zone and ROG Hyper M.2 card with heatsinks.
- High-Performance Networking: Onboard WiFi 6E Intel® 2.5 Gb Ethernet and ASUS LANGaurd.
- Fastest Gaming Connectivity: PCIe® 5.0 dual Gen 4 M.2 onboard ROG Hyper M.2 card with Gen 5 M.2 support USB 3.2 Gen 2x2 front-panel connector dual Thunderbolt™ 4 (USB Type-C® ports).
- Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for pinpoint positioning and dynamics
- Unmatched Personalization: I/O cover with Polymo Lighting ASUS-exclusive Aura Sync RGB lighting including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design: Pre-mounted I/O shield PCIe Slot Q-Release BIOS FlashBack™ Q-Code FlexKey Q-Connector M.2 Q-Latch SafeSlot ROG Hyper M.2 card and ROG Graphics Card Holder
- Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG MAXIMUS Z690 HERO The ROG Maximus Z690 Hero is a quintessential strand of the Republic of Gamers DNA replete with high-octane components to satisfy users who seek an introduction to the enthusiast-grade Maximus line. Its arsenal of cooling power delivery and connectivity stands ready to handle whatever the latest 12th Gen Intel® Core™ processors throw at it. And with its new animated Polymo lighting display on the I/O cover that dazzles with vibrant RGB logos and patterns the ROG Maximus Z690 Hero has the looks to match its leverage. INTELLIGENT MOTHERBOARD Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance including overclocking cooling networking and onboard audio making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Number of USB 2.0 Ports | 2 |
| Package Contents | - Maximus Z690 Hero Desktop Motherboard
- 1 x ARGB RGB Extension Cable
- 1 x RGB Extension Cable
- 4 x SATA 6Gb/s Cables
- 1 x ROG Hyper M.2 Card with Heatsink
- 2 x M.2 Screw Packages for ROG Hyper M.2 Card
- 1 x ASUS Wi-Fi Moving Antennas
- 1 x M.2 Q-Latch Package
- 2 x M.2 Q-Latch Packages for M.2 Backplate
- 1 x M.2 Rubber Package
- 1 x Q-Connector
- 1 x ROG Graphics Card Holder
- 1 x ROG Stickers
- 1 x ROG Key Chain
- 1 x ROG Thank You Card
- 1 x USB Drive with Utilities and Drivers
- 1 x User Guide
|
| Product Line | Maximus Z690 Hero |
| Product Name | Maximus Z690 Hero Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| Total Number of USB Ports | 9 |
| UPC Alternates | 195553455497 |
| Width | 12" |
