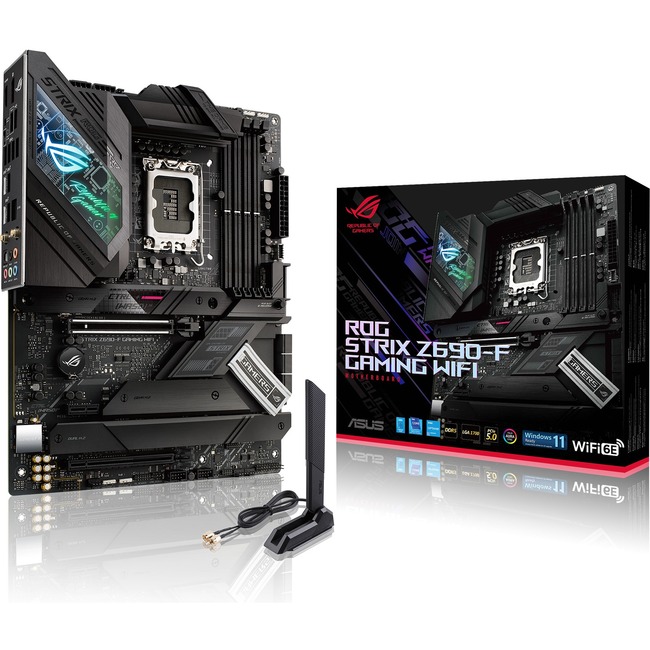

Asus ROG Strix Z690-F GAMING WIFI Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Chipset Manufacturer | Intel |
Chipset Model | Z690 |
Maximum Memory Supported | 128 GB |
Memory Speed Supported | 5800 MHz |
Number of Memory Slots | 4 |
Number of PCI Express x16 Slots | 2 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 3 |
Onboard Video | CPU Dependent Video |
Processor Generation Supported | 12th Gen |
Processor Socket | Socket LGA-1700 |
Processor Supported | Core i7 |
Total Number of Onboard USB Ports | 7 |
Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
Audio Channels | 7.1 |
Brand Name | Asus ROG |
Controller Type | Serial ATA/600 |
Depth | 9.6" |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Form factor | ATX |
Limited Warranty | 3 Year |
Manufacturer | ASUS Computer International |
Manufacturer Part Number | ROG STRIX Z690-F GAMING WIFI |
Manufacturer Website Address | http://usa.asus.com |
Marketing Information | STRIX Z690-F GAMING WIFI
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus ASUS-exclusive intelligent controls help optimize PC settings while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly. |
Memory form factor | UDIMM |
Memory form factor | DIMM |
Memory Technology | DDR5 SDRAM |
Package Contents | - Strix Z690-F GAMING WIFI Desktop Motherboard
- 4 x SATA 6Gb/s cables
- 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
- 1 x M.2 Q-Latch package
- 1 x M.2 Q-Latch package for M.2 backplate
- 2 x M.2 Rubber Packages
- 1 x ROG key chain
- 1 x cable tie
- 1 x ROG STRIX stickers
- 1 x ROG STRIX thank you card
- 1 x Support DVD
- 1 x User manual
|
Product Line | Strix |
Product Model | Z690-F GAMING WIFI |
Product Name | Strix Z690-F GAMING WIFI Desktop Motherboard |
Product Type | Desktop Motherboard |
RAID Levels | 0 |
RAID Levels | 1 |
RAID Levels | 5 |
RAID Levels | 10 |
UPC Alternates | 195553441766 |
Width | 12" |
