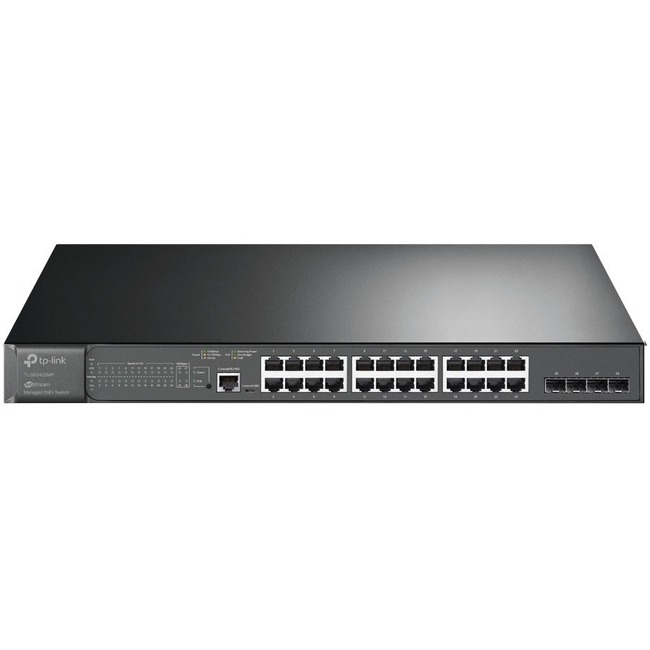

TP-Link JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
| $379.61 |
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
| Buy Once $379.61 | |||
| Subscribe & Save$360.63 | |||
| Delivery Ferquency |
24 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - Power Supply - 34.40 W Power Consumption - 384 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Desktop - Lifetime Limited Warranty
Product Specifications
| Number of Total Expansion Slots | 4 |
| PoE Budget | 384 W |
| Shared SFP Slot | No |
| Total Number of Network Ports | 24 |
| Brand Name | TP-Link |
| Country of origin | China |
| Depth | 13" |
| Environmental Certification | RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-SG3428MP |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | Convenient Gigabit Switch with 24-Port PoE+ for a Complete Omada Network JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+ TL-SG3428MP 24× Gigabit PoE+ Ports with Total 384 W Power Budget Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network Robust Security Strategies LAN Area Investment Protection Advanced L2+ Features Static Routing IGMP Snooping 802.1 Q VLAN and More Features 24× 802.3af/at compliant PoE+ ports the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission it offers flexible deployment for PoE-supported devices such as wireless access points IP cameras and IP phones lowering infrastructure costs for small businesses. Software Defined Networking (SDN) with Cloud Access Omada's Software-Defined Networking (SDN) platform integrates network devices including access points switches and gateways providing 100% centralized cloud management. Omada creates a highly scalable network- all controlled from a single interface. Seamless wireless and wired connections are provided ideal for use in hospitality education retail offices and more. Secure Networking Security features include IP-MAC-Port-VID Binding Port Security Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available making it easier than ever to prevent them. In addition the Access Control Lists (ACL L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address IP address TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Voice and video traffic can be prioritized based on IP address MAC address TCP port number UDP port number and more. With QoS (Quality of Service) voice and video services remain smooth even when bandwidth is in short supply. Abundant L2 and L2+ Features A complete lineup of L2 features are supported including 802.1Q VLAN Port Mirroring STP/RSTP/MSTP Link Aggregation Control Protocol and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers cutting out unnecessary traffic while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. sFlow QinQ L2PT PPPoE ID Insertion and IGMP authentication features are provided developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack MLD Snooping IPv6 ACL DHCPv6 Snooping IPv6 Interface Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-T |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3at |
| Package Contents |
|
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Power consumption | 34.40 W |
| Power source | Power Supply |
| Product Line | JetStream |
| Product Name | JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+ |
| Product Type | Ethernet Switch |
| UPC Alternates | 845973010157 |
| Width | 17.3" |
