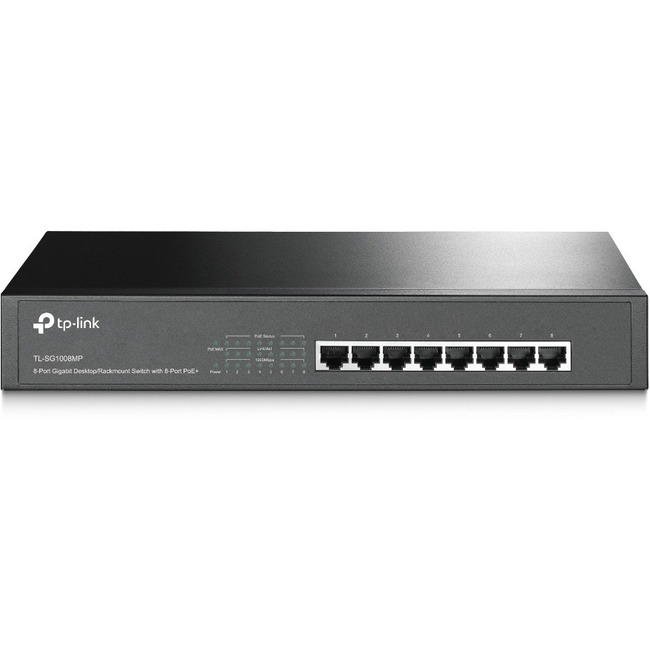

TP-Link TL-SG1008MP - 8-Port Gigabit PoE Switch - Limited Lifetime Protection - 8 PoE+ Ports @153W - Rackmount - Plug & Play - Sturdy Metal - Shielded Ports - Overload Protection w/ Port Priority
8 PoE+ Ports @153W - Rackmount - Plug & Play - Sturdy Metal - Shielded Ports - Overload Protection w/ Port Priority
| PoE Budget | 126 W |
| Total Number of Network Ports | 8 |
| Brand Name | TP-Link |
| Country of origin | China |
| Depth | 7.1" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 2 |
| Limited Warranty | 2 Year |
| Manageable | No |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-SG1008MP |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W up to 30W per port TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs) IP Cameras or IP Phones. Moreover with innovative energy-efficient technology the TL-SG1008MP can save up to 75% of the power consumption making it an eco-friendly solution for your business network. How This Product Works All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation the electrical power is transmitted along with data in a single cable allowing you to expand your network where there are no electrical cables or outlets where you wish to fix devices such as APs IP Cameras or IP Phones. Overload Arrangement TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 126W a priority will be arranged among the 8 PoE+ ports at which point the system will cut off the power of the lowest-priority port. Port Priority Function Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example if port 1 2 4 and 7 are using 30W (maximum power per port is 30W the system power is 126W in total) and there is an additional device inserted into Port 3 at 25W the system will cut off the power of Port 7 in response to the power exceeding the 126W limit. This means Port 1 2 and 4 will use 30W and Port 3 will use 25W with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use. Easy To Use TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design outstanding performance and quality the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network. More from the Manufacturer |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-T |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3af |
| Package Contents | - 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
|
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Power consumption | 9.89 W |
| Power source | Power Supply |
| Product Name | 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ |
| Product Type | Ethernet Switch |
| UPC Alternates | 840030700057 |
| Width | 11.6" |
