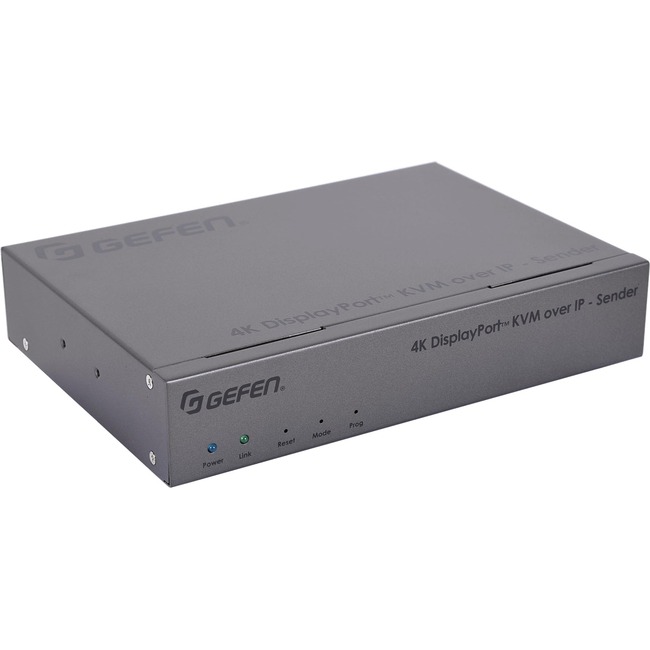

Gefen 4K DisplayPort tm KVM Over IP - Sender Package
| $427.57 Retail $851.00 |
- Extends DisplayPort™, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
- Independent video, USB, RS-232, IR, and audio routing (future firmware update)
- Backward-compatible with first generation Gefen AV over IP products
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Supports HDCP 2.2 and 1.4
- KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16x16
- Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to extern
| Buy Once $427.57 | |||
| Subscribe & Save$406.19 | |||
| Delivery Ferquency |
1 Computer(s) - 4K - 1 x Network (RJ-45) - 1 x USB - DisplayPort - Rack-mountable, Surface-mountable - For PC
Product Specifications
| KVM Technology | Digital |
| Brand Name | Gefen |
| Connectivity technology | Wired |
| Form factor | Surface-mountable |
| Form factor | Rack-mountable |
| Graphic Mode | 4K |
| Limited Warranty | 3 Year |
| Manufacturer | Gefen Inc |
| Manufacturer Part Number | EXT-DPKA-LANS-TX |
| Manufacturer Website Address | http://www.gefen.com |
| Marketing Information | Gefen EXT-DPKA-LANS-TX PRE-ORDER Gefen's AV over IP solutions continue their tradition of providing high performance scalable expandable and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance features and functionality such as 4K Ultra HD with HDR support built-in scalers video-wall control independent USB RS-232 IR and audio routing** and backward-compatibility with our first-generation products. The EXT-DPKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0 and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. USB RS-232 2-way IR and audio can be routed independently** between any Sender and Receiver unit allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance the new Gefen AV over IP products fully address the ever-growing needs of systems integrators. The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. When used in HDMI mode digital and analog audio break-out de-embeds audio from the video and sends it to a separate audio system enhancing the impact of presentations. The Receiver's integrated USB hub with two USB 2.0 and two USB 1.1 ports accommodates touch panels keyboard and mouse and a variety of supported devices. This feature along with analog audio inputs and outputs make these products perfect to use in collaborative and interactive installations. To ensure maximum versatility and compatibility the audio outputs on the Receiver units are compatible with both headphones and line level devices such as powered speakers. |
| Microphone | Yes |
| Package Contents |
|
| Packaged Quantity | 1 |
| Platform Supported | PC |
| Product Name | 4K DisplayPort tm KVM Over IP - Sender Package |
| Product Type | KVM Extender |
| UPC Alternates | 800100236763 888814999808 |
