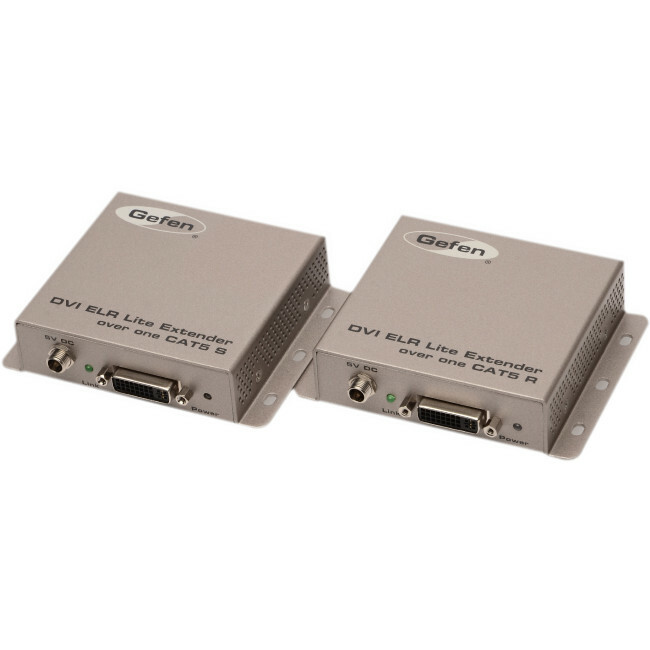

Gefen DVI ELR Lite Extender Over One CAT5 - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - Surface-mountable
1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - Surface-mountable
| Network (RJ-45) | Yes |
| Number of DVI Outputs | 1 |
| Transmitter Depth | 3.40" |
| Transmitter Height | 1" |
| Transmitter Weight (Approximate) | 3.09 lb |
| Transmitter Width | 4.30" |
| Brand Name | Gefen |
| Connectivity technology | Wired |
| Form factor | Surface-mountable |
| Graphics Modes | WUXGA |
| Input voltage | 5 V DC |
| Manufacturer | Gefen Inc |
| Manufacturer Part Number | EXT-DVI-1CAT5-SR |
| Manufacturer Website Address | http://www.gefen.com |
| Marketing Information | Extend DVI up to 230 feet (70 meters) over one CAT-6A cable or up to 200 feet (60 meters) over one CAT-5e The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display up to 230 feet (70 meters) using a CAT-6A cable and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen's ELR Lite implementation of HDBaseT® Lite™ technology allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable reducing cable costs and facilitating simple and effective installation. |
| Maximum Operating Distance | 230 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - 1 x DVI ELR Lite Extender over one CAT5 - Sender Unit
- 1 x DVI ELR Lite Extender over one CAT5 - Receiver Unit
- 1 x 6 ft. Dual Link DVI Copper Cable
- 2 x 5V DC Locking Power Supplies
- 1 x Quick-Start Guide
|
| Product Name | DVI ELR Lite Extender Over One CAT5 |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 845344038759 |
