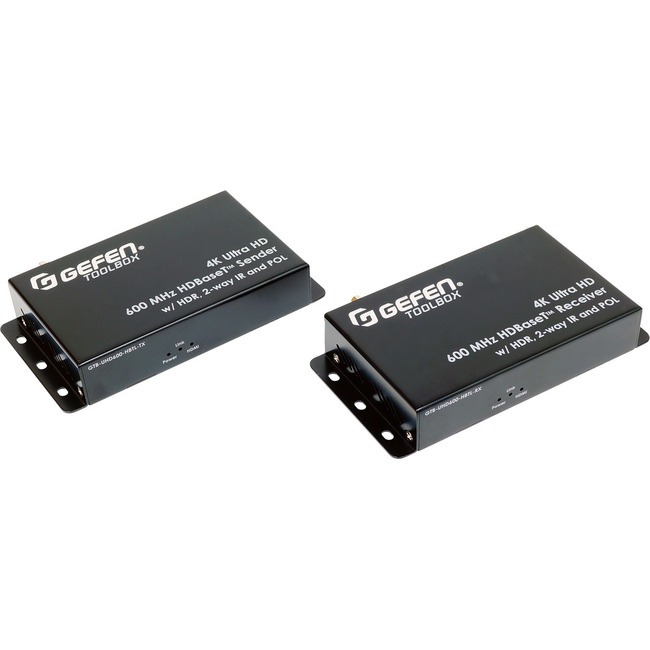

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR, 2-Way IR, And POL - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
| Network (RJ-45) | Yes |
| Transmitter Depth | 2.90" |
| Transmitter Height | 1" |
| Transmitter Weight (Approximate) | 9.60 oz |
| Transmitter Width | 4.70" |
| Brand Name | Gefen |
| Connectivity technology | Wired |
| Form factor | Surface-mountable |
| Graphics Modes | 4K |
| Limited Warranty | 3 Year |
| Manufacturer | Gefen Inc |
| Manufacturer Part Number | GTB-UHD600-HBTL |
| Manufacturer Website Address | http://www.gefen.com |
| Marketing Information | Gefen GTB-UHD600-HBTL Extend Full-Bandwidth HDMI 2.0 w/ HDR up to 40 meters/132 feet over a single CAT-5 The Gefen GTB-UHD600-HBTL is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 40 meters (132 feet) over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT™ technology along with Gefen's visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio) to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBTL also supports 1080p Full HD WUXGA (1920 x 1200) 3DTV and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are passed through to the HDMI outputs. The GTB-UHD600-HBTL provides 2-way IR extension between the Sender and the Receiver units facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small low profile enclosures can be securely surface-mounted and conveniently hidden away from sight and accommodate Gefen locking HDMI cables for secure connections. |
| Maximum Operating Distance | 200 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - 1 x Sender Unit (GTB-UHD600-HBTL-TX)
- 1 x Receiver Unit (GTB-UHD600-HBTL-RX)
- 1 x HDMI-To-HDMI Male-To-Male Locking Cable 6 Feet
- 1 x IR Emitter (EXT-IREMIT)
- 1 x IR Extender (EXT-RMT-EXTIRN)
- 1 x 12V DC Power Supply With US/EU/UK/AU Reginal AC Plugs And 5.5mm/2.1mm DC Plug (EXT-PS121.5AIP-LP-6)
- 1 x Quick-Start Guide
|
| Product Name | 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 696551547776 818242905607 888814999938 |
