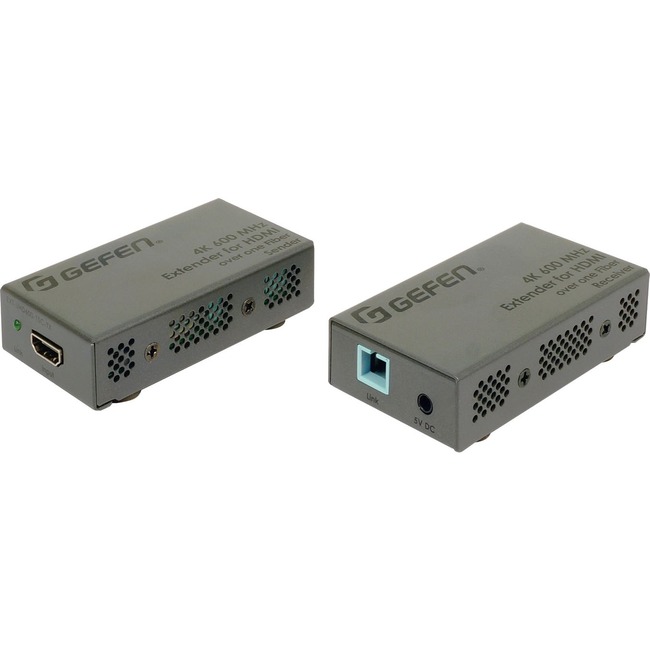

Gefen 4K Ultra HD 600 MHz Extender For HDMI Over One Fiber-Optic Cable - 1 Input Device - 1 Output Device - 660 ft RangeHDMI InHDMI Out - 2 x SC Ports - 4K - 4096 x 2160 - Optical Fiber - Desktop
1 Input Device - 1 Output Device - 660 ft RangeHDMI InHDMI Out - 2 x SC Ports - 4K - 4096 x 2160 - Optical Fiber - Desktop
| HDMI In | Yes |
| Number of Output Devices Supported | 1 |
| Number of SC Ports | 2 |
| Transmitter Depth | 3.11" |
| Transmitter Height | 0.87" |
| Transmitter Weight (Approximate) | 6.40 oz |
| Transmitter Width | 1.77" |
| Brand Name | Gefen |
| Connectivity technology | Wired |
| Form factor | Desktop |
| Graphics Modes | 4K |
| Limited Warranty | 2 Year |
| Manufacturer | Gefen Inc |
| Manufacturer Part Number | EXT-UHD600-1SC |
| Manufacturer Website Address | http://www.gefen.com |
| Marketing Information | Gefen EXT-UHD600-1SC Extend Uncompressed Full-Bandwidth HDMI 2.0 w/ HDR up to 200 meters/660 feet The Gefen EXT-UHD600-1SC is a compact and high-performance solution for extending uncompressed full-bandwidth HDMI 2.0 audio/video with HDR up to 200 meters (660 feet) over a single strand of SC-terminated 50/125 µm OM3 or better multi-mode fiber-optic cable. It supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency the highest specified under the HDMI 2.0 standard. Full bandwidth support allows the Gefen extender to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 up to 60 Hz 4:4:4) along with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 are both supported. The EXT-UHD600-1SC also supports 1080p Full HD WUXGA (1920 x 1200) 3DTV and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are passed through to the HDMI outputs. There is full electrical isolation between the Sender and the Receiver meeting the stringent safety and EMC requirements for critical applications. This extender can be powered from sources and displays featuring powered USB ports or by using external power supplies. The Sender and Receiver are plug-and-play and work without any set-up. Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging military and industrial command and control rooms flight simulators digital signage gaming and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential. |
| Maximum Operating Distance | 660 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Optical Fiber |
| Package Contents | - 1 x Sender Unit (EXT-UHD600-1SC-TX)
- 1 x Receiver Unit (EXT-UHD600-1SC-RX)
- 2 x HDMI-To-HDMI Male-To-Male Cable 3.3 Feet
- 2 x USB Type-A-To-DC Cable 2.3 ft
- 2 x 5V DC Power Supplies & 2 Sets Of Regional AC Plugs (US UK EU & AU) (EXT-PS52AIP-1.3-6-AL)
- 1 x Quick Start Guide
|
| Product Name | 4K Ultra HD 600 MHz Extender For HDMI Over One Fiber-Optic Cable |
| Product Type | Video Extender Transmitter/Receiver |
| UPC Alternates | 818241682967 888814999945 |
