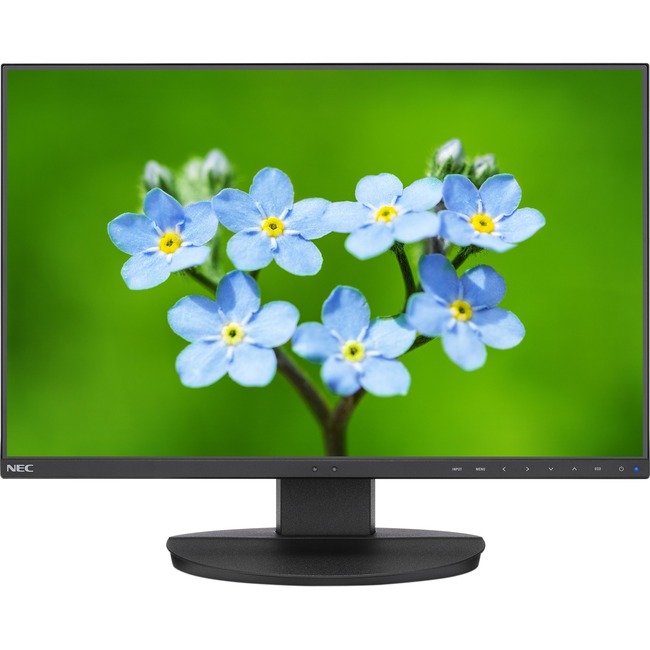

NEC Display MultiSync EA231WU-BK 22.5" WUXGA WLED LCD Monitor - 16:10 - Black - 1920 x 1200 - 16.7 Million Colors - 250 Nit Typical - 5 ms - DVI - HDMI - VGA - DisplayPort - USB Hub
1920 x 1200 - 16.7 Million Colors - 250 Nit Typical - 5 ms - DVI - HDMI - VGA - DisplayPort - USB Hub
| Color Gamut | 72.9% Adobe RGB |
| Color Gamut | 94.3% sRGB |
| Color Gamut | 69.5% NTSC |
| Depth with Stand | 9.80" |
| Height with Stand | 19.20" |
| Number of Screens | 1 |
| Vertical Frequency | 50 Hz to 60 Hz |
| VESA Mount Standard | 100 x 100 |
| Width with Stand | 19.60" |
| Aspect ratio | 16:10 |
| Backlight Technology | WLED |
| Brand Name | NEC Display |
| Brightness | 250 Nit |
| Built-in Devices | Speaker |
| Built-in Devices | USB Hub |
| Color | Black |
| Color Supported | 16.7 Million Colors |
| Country of origin | China |
| Depth | 1.8" |
| Environmental Certification | RoHS |
| Environmental Certification | ENERGY STAR 7.0 |
| Environmental Certification | TCO Certified Displays 7.0 |
| Height | 12.6" |
| Horizontal Frequency | 31.50 kHz to 75 kHz - Analog/Digital |
| Limited Warranty | 3 Year |
| Manufacturer | Sharp NEC Display Solutions Ltd. |
| Manufacturer Part Number | EA231WU-BK |
| Manufacturer Website Address | http://www.necdisplay.com |
| Marketing Information | The 23" NEC MultiSync EA231WU is a Wide UXGA (1920x1200) ultra-narrow bezel IPS desktop monitor ideal for corporate environments. Designed for excellent imaging and ideal for multiple monitor configurations this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA231WU allows for a slimmer profile lighter weight and increased power savings compared to previous generation models.ControlSync™ echnology allows users to control up to six EA231WU displays in a multi-monitor configuration. Upon establishing one unit as the master users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI DisplayPort DVI-D VGA and 3-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. - LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Height-adjust pivot tilt and swivel capabilities add flexibility and comfort to your viewing preferences
- Full connectivity including DisplayPort HDMI DVI-D and VGA
- Touch-sensitive OSD® controls are integrated into the bezel making display adjustments easier than ever
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness thereby conserving power
- Certified Low Blue Light and Flicker Free
- ECO Mode™ allows you to manually adjust the display's brightness to your liking saving power and reducing your energy costs
- dual direction pivot and the image flip feature allow users to arrange the thinnest inactive areas together for nearly seemless images
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit.
|
| Maximum resolution | 1920 x 1200 |
| Operating Power Consumption | 15 W |
| Package Contents | - MultiSync EA231WU-BK Widescreen LCD Monitor
- Setup sheet
- User manual
- Power cord
- DisplayPort cable
- USB cable
- ControlSync cable
|
| Pixel Pitch | 9.8 mil |
| Product Family | MultiSync EA |
| Product Line | MultiSync |
| Product Name | MultiSync EA231WU-BK Widescreen LCD Monitor |
| Product Series | EA |
| Product Type | LCD Monitor |
| Response time | 5 ms |
| Screen Mode | WUXGA |
| Speakers | Yes |
| Standby Power Consumption | 290 mW |
| UPC Alternates | 805736070378 |
| Viewable Screen Size | 22.5" |
| Weight (Approximate) | 7.50 lb |
| Weight with Stand (Approximate) | 13 lb |
| Width | 19.6" |
