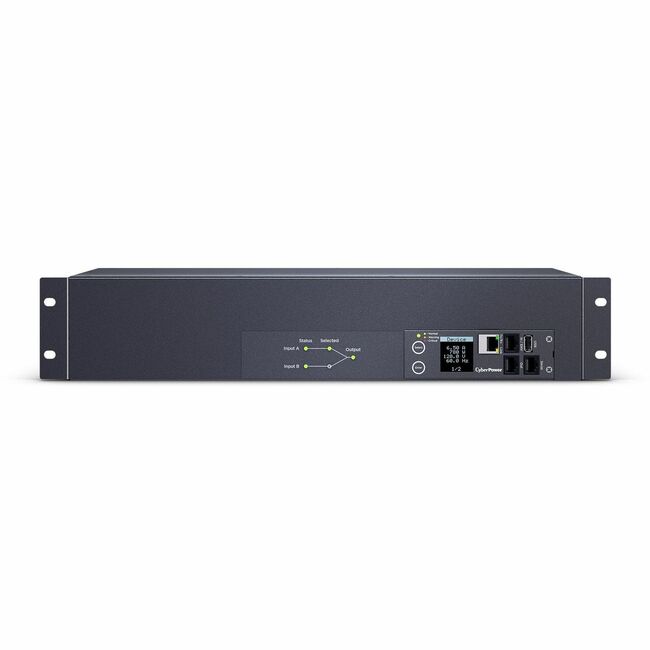

CyberPower Metered ATS PDU PDU44003 17-Outlets PDU - Metered - NEMA L5-30P - 16 x NEMA 5-20R, 1 x NEMA L5-30R - 120 V AC - Network (RJ-45) - 2U - Horizontal - Rack-mountable
Metered - NEMA L5-30P - 16 x NEMA 5-20R, 1 x NEMA L5-30R - 120 V AC - Network (RJ-45) - 2U - Horizontal - Rack-mountable
| Mounting Orientation | Horizontal |
| PDU Type | Metered |
| Phase | Single Phase |
| Plug/Connector Detail | 2 x NEMA L5-30P |
| Receptacle Detail | 1 x NEMA L5-30R |
| Brand Name | CyberPower |
| Country of origin | China |
| Depth | 8.4" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 3.5" |
| Input current | 30 A |
| Input voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Limited Warranty | 3 Year |
| Management | - IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
|
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | PDU44003 |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU44003 Switched ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally this unit offers real time remote and local monitoring and outlet management.
The PDU44003 supports inputs between 100-120V and includes (16) NEMA 5-20R and (1) L5-30R outlets. Dual NEMA L5-30P power cords are plugged into separate power sources (A and B) and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color built-in web interface and power event notifications. The CyberPower PDU44003 is protected by a three-year limited warranty |
| Mount Type | Rack-mountable |
| Plug/Connector Type | NEMA L5-30P |
| Product color | Black |
| Product Name | Metered ATS PDU PDU44003 17-Outlets PDU |
| Product Series | Metered ATS PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 2U |
| Receptacle Type | NEMA L5-30R |
| Receptacle Type | NEMA 5-20R |
| UPC Alternates | 649532933914 |
| Weight (Approximate) | 17.59 lb |
| Width | 17.1" |
