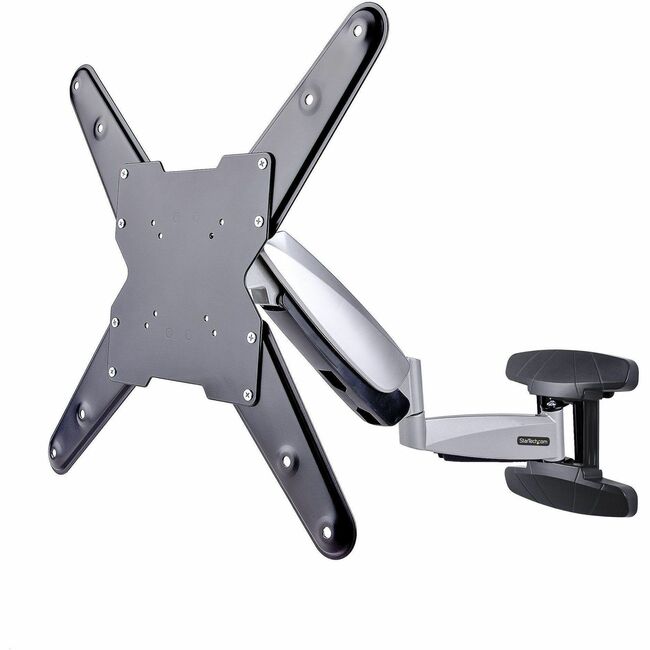

StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Extendable/Tilting/Swivel TV Wall Mount
| $122.34 Retail $158.99 |
- HEIGHT ADJUSTABLE TV WALL MOUNT: Spring-assisted height adjustable range 12.6in (32cm); Articulating wall mount TV bracket supports TVs up to 55in; Max weight 66lb (30kg); Single-stud design made from powder-coated diecast aluminum for maximum durability
- ONE-TOUCH MOTION: Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90? swivel, +8/-15? tilt, and +/-3? rotation; Toolless adjustment w/ built-in cable management
- RANGE OF MOTION: Low profile VESA TV wall mount with jointed arm assembly supports +/-90? swivel and folds to just 2.2in (5.8cm) from the wall; Max arm extension 23.4in (59.5cm); Lateral range of 3.9ft (1.19m) ideal for corner mounting maximizing space
- COMPATIBILITY: TV mounting bracket supports TVs up to 55" from LG, Samsung, Sony, Hisense, Sharp, and other TVs; Compatible VESA patterns: 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, and 400x400; Spacers an
| Buy Once $122.34 | |||
| Subscribe & Save$116.22 | |||
| Delivery Ferquency |
Spring-assisted height adjustable TV wall mount range 12.6in/32cm; Extendable arm range 23.4in/59.5cm - Tilting/swivel/full motion for 23-55in TVs; 75x75 to 400x400 VESA TV wall mount patterns; 66lb/30kg capacity - TV mounting bracket ships assembled
Product Specifications
| Minimum Load Capacity | 17.64 lb |
| Mount Profile | Low Profile |
| Mounting Pattern | 400 x 200 |
| Mounting Pattern | 400 x 400 |
| Mounting Pattern | 200 x 100 |
| Mounting Pattern | 75 x 75 |
| Mounting Pattern | 200 x 200 |
| Mounting Pattern | 300 x 300 |
| Mounting Pattern | 100 x 100 |
| Product Material | Aluminum |
| Application/Usage | Board Room |
| Application/Usage | Wall |
| Application/Usage | Lobby |
| Country of origin | China |
| Device Supported | Curved Screen Display |
| Device Supported | TV |
| Device Supported | Flat Panel Display |
| Features | Tool-less Adjustment |
| Features | +/- 3° Rotation |
| Features | Durable |
| Features | Cable Management |
| Features | Articulating |
| Features | Adjustable |
| Features | +/- 90° Swivel |
| Features | Full Motion |
| Features | 8°/-15° Tilt |
| Features | 180° Swivel |
| Finishing | Silver |
| Height | 17.7" |
| Length | 23.4" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FHA-TV-WALL-MOUNT |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | "The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23"" to 55"" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400. Versatile TV Mounting Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors clients and employees. This TV wall mount is ideal for lobbies boardrooms and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls using the included hardware. Supported VESA mounting patterns: 75x75100x100 200x100 200x200 300x300 400x200 and 400x400. Full-Motion Adjustment The VESA plate swivels +90 / -90 degrees tilts +8 / -15 degrees and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments with a range of up to 12.6in (32cm). The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions. Durable Construction The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation. The height adjustable TV wall mount is backed for two years including free lifetime 24/5 multi-lingual technical assistance." |
| Maximum Load Capacity | 66.14 lb |
| Maximum Screen Size Supported | 55" |
| Minimum Screen Size Supported | 23" |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product color | Black |
| Product Type | Wall Mount |
| UPC Alternates | 065030895149 |
| VESA Mount Compatible | Yes |
| Weight (Approximate) | 13.20 lb |
