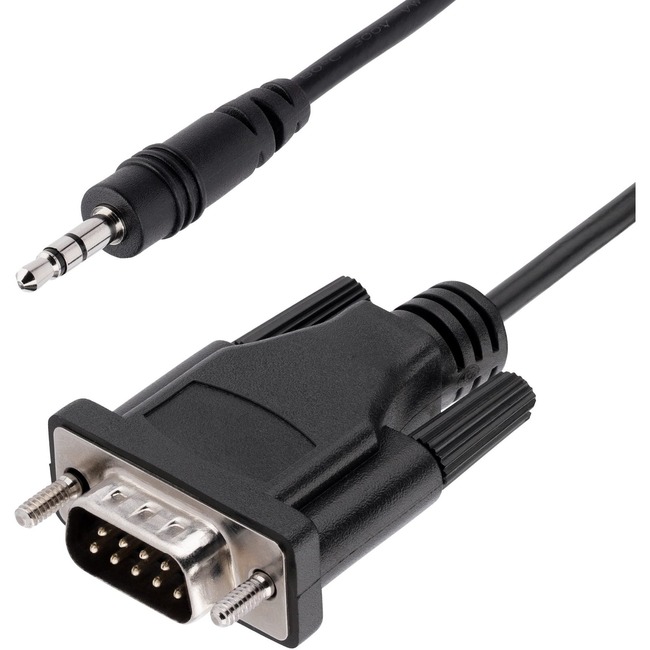

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack
New
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - 3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays
| $9.73 Retail $18.99 |
- DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs, projectors, digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack
- QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage
- COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port Note: DB9 gender changer may be required such as our GC9SF (not included)
- SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD:3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve
- THE
Subscribe & Save5%
| Buy Once $9.73 | |||
| Subscribe & Save$9.24 | |||
| Delivery Ferquency |
You may be also interested
$15.87
$28.99
$3.27
$7.99
$5.31
$8.99
$5.79
$9.99
$24.01
$43.99
$4.13
$8.99
$7.29
$13.99
$15.50
$27.99
$12.90
$21.99
$34.26
$53.28
$4.03
$8.99
$26.50
$40.00
$35.08
$51.99
$4.67
$8.99
$7.95
$13.99
$3.89
$8.99
$2.77
$7.86
$34.00
$40.00
$9.46
$15.99
$5.42
$9.99
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - 3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays
3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays
3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays
Product Specifications
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x Mini-phone Stereo Audio - Male |
| Connector on Second End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Connector Type on First End | Mini-phone Stereo Audio - Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Male |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | metal - shell |
| Product Material | Metal |
| Shielding Material | Aluminum Mylar |
| American Wire Gauge | 28 AWG |
| Cable length | 3.28 ft |
| Connector Plating | Nickel |
| Country of origin | China |
| Device Supported | Audio Device |
| Device Supported | Computer |
| Device Supported | Digital Signage |
| Device Supported | TV |
| Device Supported | Projector |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Features | Molded |
| Features | Abrasion Resistant |
| Features | Screw Lock |
| Features | Strain Resistant |
| Features | Strain Relief |
| Features | Bendable |
| Features | EMI Protection |
| Features | Damage Resistant |
| Limited Warranty | Lifetime |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 9M351M-RS232-CABLE |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs projectors and digital signage devices that feature a 3.5mm audio jack. High Quality Construction The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion. Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption DB9 Serial to 3.5mm Pinout DB9 Pin 3 to 3.5mm Tip DB9 Pin 2 to 3.5mm Ring DB9 Pin 5 to 3.5mm Sleeve This product is backed for life including free lifetime 24/5 multi-lingual technical assistance. |
| Packaged Quantity | 1 |
| Product color | Black |
| Product Name | DB9 to 3.5mm RS232 Serial Cable |
| Product Type | Data Transfer Cable |
| Shielding | Yes |
| UPC Alternates | 065030893565 |
