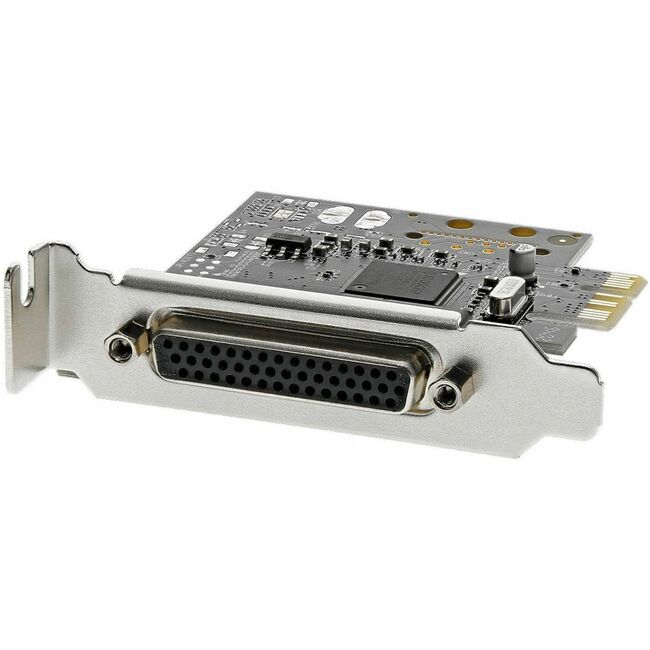

StarTech.com 4 Port PCI Express Serial Card w/ Breakout Cable
| $105.92 Retail $138.99 |
- Native single chip design
- Includes a full profile and low profile/half-height bracket
- On chip 256-byte depth FIFO in transmit/receive path of each port
- Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
- Supports hardware and software flow control
- Supports data transfer rates up to 250Kbps on each port
- Compliant with PCI Express base specifications revision 1.0a
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
| Buy Once $105.92 | |||
| Subscribe & Save$100.62 | |||
| Delivery Ferquency |
Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter
Product Specifications
| Ports Expandability | 4 x DB-9 RS-232 - Serial Via Cable |
| Country of origin | China |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Plug-in Card |
| Height | 2.7" |
| Host interface | PCI Express x1 |
| Limited Warranty | Lifetime |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX4S553B |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot. The serial card features a native single-chip design that provides optimum reliability and speed reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers. The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers and is compatible with a broad range of operating systems including Windows® Linux and MAC OS. This product is a replacement for our PEX4S552B card. Backed by a StarTech.com lifetime warranty and free lifetime technical support. |
| Marketing Information | The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot. The serial card features a native single-chip design that provides optimum reliability and speed reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers. The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers and is compatible with a broad range of operating systems including Windows® Linux and MAC OS. This product is a replacement for our PEX4S552B card. Backed by a StarTech.com lifetime warranty and free lifetime technical support. |
| Maximum Data Transfer Rate | 1.95 Mbit/s |
| Number of Ports | 4 |
| Package Contents |
|
| Platform Supported | PC |
| Platform Supported | Linux |
| Platform Supported | Mac |
| Product Name | 4 Port RS232 PCI Express Serial Card w/ Breakout Cable |
| Product Type | Multiport Serial Adapter |
| System Requirements | OS Compatibility:
|
| UPC Alternates | 065030842556 |
| Weight (Approximate) | 8.40 oz |
| Width | 0.5" |
