StarTech.com StarTech.com VGA Video Extender over CAT5 (ST121 Series)
| $115.35 Retail $152.99 |

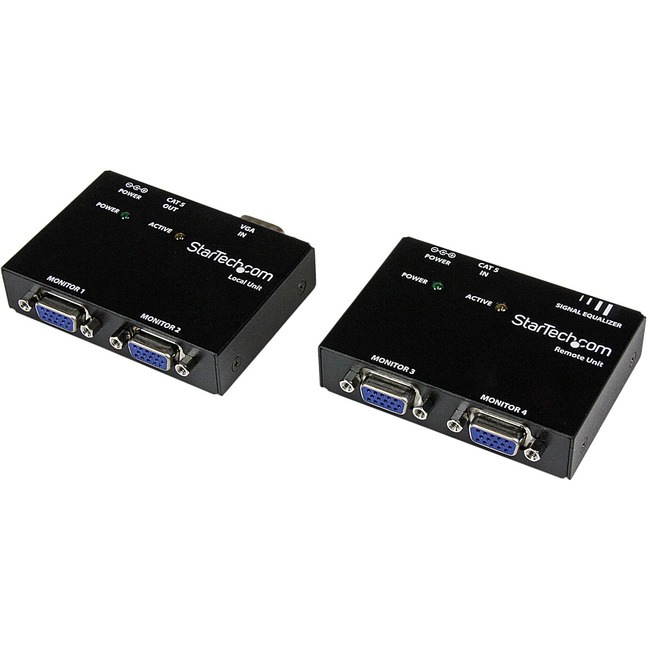

- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends video cables by up to 500 ft. (150m)
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
- Included mounting brackets
| Buy Once $115.35 | |||
| Subscribe & Save$109.58 | |||
| Delivery Ferquency |
Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling - vga over cat5 extender - vga extender over cat5 - vga over cat 5 extender - vga extender over cat 5 - VGA to Cat5 Extender
Product Specifications
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 4 |
| Transmitter Depth | 2.40" |
| Transmitter Height | 0.80" |
| Transmitter Weight (Approximate) | 11.82 oz |
| Transmitter Width | 3.30" |
| Additional Information |
|
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Graphics Modes | SXGA |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121UTP |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit offering a complete solution for scenarios in which remote monitor displays are required. The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total. The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall desk or cabinet. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
| Marketing Information | The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit offering a complete solution for scenarios in which remote monitor displays are required. The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total. The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall desk or cabinet. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
| Maximum Operating Distance | 500 ft |
| Maximum Video Resolution | 1280 x 1024 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents |
|
| Product Name | VGA Video Extender over CAT5 (ST121 Series) |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 5e |
| UPC Alternates | 065030791236 |
