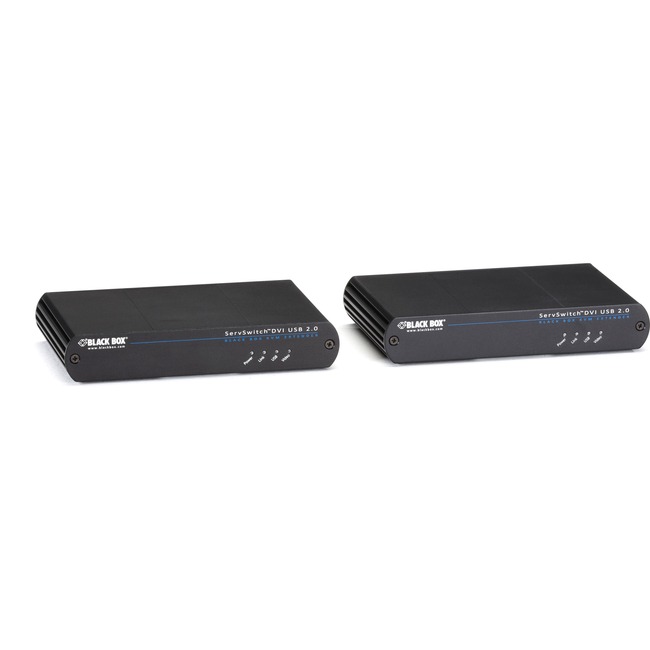

Black Box KVM Extender - DVI-D, USB 2.0, Single-Access, CATx - 1 Computer(s) - 1 Local User(s) - 328 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x DVI - 120 V AC, 240 V AC Input Voltage
1 Computer(s) - 1 Local User(s) - 328 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x DVI - 120 V AC, 240 V AC Input Voltage
| Transmitter Depth | 1.20" |
| Transmitter Height | 4.40" |
| Transmitter Width | 6.90" |
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Country of origin | China |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Input voltage | 240 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Limited Warranty | 1 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU1500A-R3 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - No compression no delay of video data.
- Easy setup no adjustments.
- Supports all major operating systems.
- Uses a single solid core CAT5 (or better) cable for desktop extension simplifying installation. Solid-core CAT6 is recommended for best performance.
- A computer can be located remotely from a desktop area freeing up space and providing security.
- Servers computers software and any other sensitive hardware can be kept in a secure location where maintenance can be performed easily.
- Supports USB 2.0 devices as well as USB audio devices.
- Supports HDCP pass-through.
- Mass-Strorage Acceleration Technology.
Place a computer up to 330 feet (100 m) from the workstation area connected with a single inexpensive CATx cable. Supports Full HD video and USB 2.0 including control of the keyboard mouse Web cameras Flash drive speakers microphone and other USB 1.1 and USB 2.0 devices.
The ideal high-resolution KVM extenderThe ServSwitch™ DVI-D with USB 2.0 KVM Extender preserves the quality of the DVI video signal and offers real-time transmission without the delays and compression that degrades the high-resolution viewing experience.
USB HID supportThe extender supports of a variety of HIDs. Keyboards and mice are the most common HIDs but other devices based on HID protocol including some touch screens will work as well.
DDC read channelThe DDC read capability enables true EDID information to be received from the attached display. This guarantees optimum plug-and-play support. |
| Maximum Operating Distance | 328 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Computers Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Product Name | KVM Extender - DVI-D USB 2.0 Single-Access CATx |
| Product Type | KVM Extender |
| UPC Alternates | 822088123118 |
