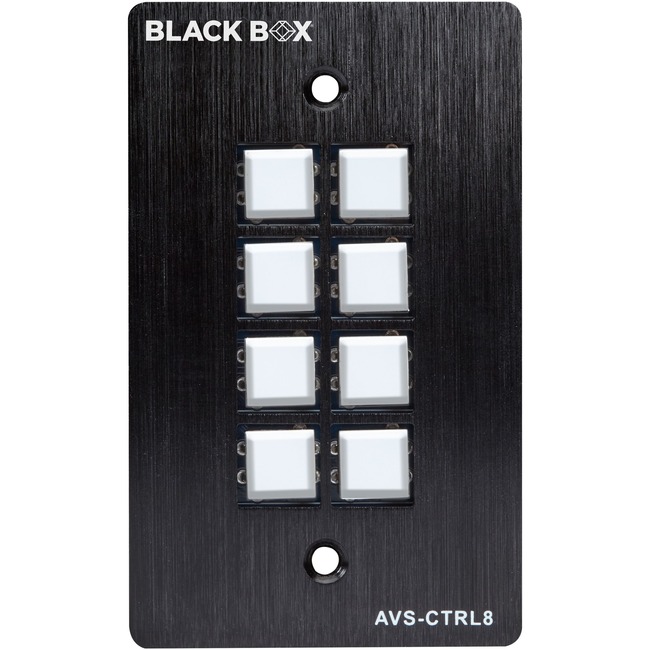

Black Box Wallplate Control Panel - RS-232, 8-Button
New
Black Box Wallplate Control Panel - RS-232, 8-Button - Wireless
0 Review(s)Item: AVS-CTRL8 | By: Black Box |
0 In Stock
Sorry This Product is Currently not Available to Buy.
Maximum 99-unit programmable control panels can be looped and controlled together.
Supports page, toggle, compare, and delay settings.
Designed to operate any AV or KVM switches or scalers with RS-232 control, or other AV devices with either RS-232, RS-485, IR, or relay control.
Every button is fully programmable to perform operations such as turning a display on/off, select channels on a TV, or switch inputs on a matrix switcher.
Black Box Wallplate Control Panel - RS-232, 8-Button - Wireless Wireless
Product Specifications
Additional Information
Compliance: FCC
General
Humidity: 10 to 90% noncondensing
Interface: Programming Port: USB or RS-232 Serial Control Port: RS-232 Band Rate and Protocol: 9600 band 8 data bits 1 stop bit no parity Frequency Response: 20 Hz to 20 kHz
Operating Temperature: -4 to 158° F (-20 to 70° C)
Power: Supply: 100 to 240 VAC 50/60 Hz; Consumption: 1 W
Storage Temperature: -4 to 158° F (-20 to 70° C)
Brand Name
Black Box
Connectivity technology
Wireless
Country of origin
China
Depth
4.5"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Gang Box Mount
Form factor
Wall Mountable
Form factor
Wall Plate
Height
1.1"
Limited Warranty
3 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
AVS-CTRL8
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Each of the 8 buttons can be user programmed using the included software to send IR relay control or bi-directional RS-232 and RS-485 commands simultaneously to control third-party devices.
The panel is designed in a high quality black metal finish with LED back lit buttons and fits into a standard single gang outlet box.
Product color
Metal Black
Product Condition
New
Product Name
Wallplate Control Panel - RS-232 8-Button
Product Type
A/V Control Panel
UPC Alternates
822088122883 995477321997
Weight (Approximate)
5.28 oz
Width
2.8"
