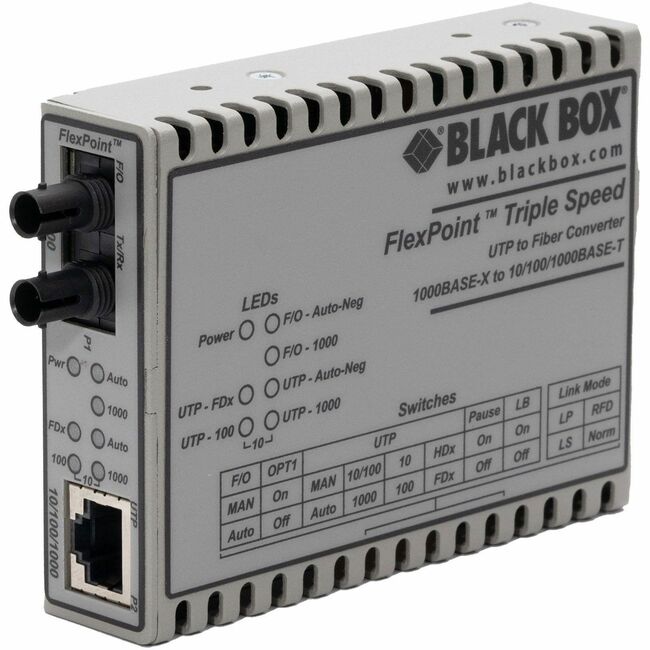

Black Box FlexPoint LMC1017A-SMST Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-LX - Rail-mountable, Rack-mountable, Wall Mountable, External - TAA Compliant
1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-LX - Rail-mountable, Rack-mountable, Wall Mountable, External - TAA Compliant
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 7.46 Mile |
| ST Port Type | Duplex |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 4" |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Wall Mountable |
| Form factor | Rail-mountable |
| Form factor | Rack-mountable |
| Form factor | External |
| Height | 1" |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC1017A-SMST |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Easy installation and transparent operation no software required.
- Enables you to send data much farther and more securely than what's possible for copper Ethernet.
- Auto negotiates for speed to achieve the best possible mode of operation.
- UTP port supports full- and half-duplex operation.
- To prevent congestion supports automatic and manual pause function for flow control.
- Supports jumbo frames up to 10240 bytes.
- Remote fault indicators signal loss of link for far-end fault and link fault conditions.
- Loopback mode supports end-to-end testing.
- Manual switches give you the option to control port operation.
- Hardware available for mounting the converter to a wall or a DIN rail.
- Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
- RoHS compliant.
FlexPoint™ Media Converters from Black Box are versatile and cost-effective standalone converters that provide the ultimate in flexibility and reliability for your expanding LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements. Get the converters you need now and use them individually. Then when your LAN grows mount your converters on the wall in the FlexPoint 5-Position Rackmounting Kit or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies. The model featured here supports Gigabit-speed communications. It connects to 10- 100- or 1000-Mbps Ethernet on the copper side and to 1000-Mbps single-mode cabling on the fiber side extending network communications up to 12 kilometers (7.4 mi.) over single-mode fiber. For easy installation and troubleshooting LEDs indicate the availability of power port activity and link status and duplex mode. Remote fault indicators signal loss of link for far-end fault and link fault conditions. Detection of these indicators or link modes can be propagated to the other port to notify connected end devices of faults. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-LX |
| Network Technology | 10/100/1000Base-TX |
| Number of Network (RJ-45) Ports | 1 |
| Power source | Power Supply |
| Product Line | FlexPoint |
| Product Name | FlexPoint LMC1017A-SMST Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 098379349059 822088078661 822088078678 |
| USB | No |
| Weight (Approximate) | 6.40 oz |
| Width | 3" |
