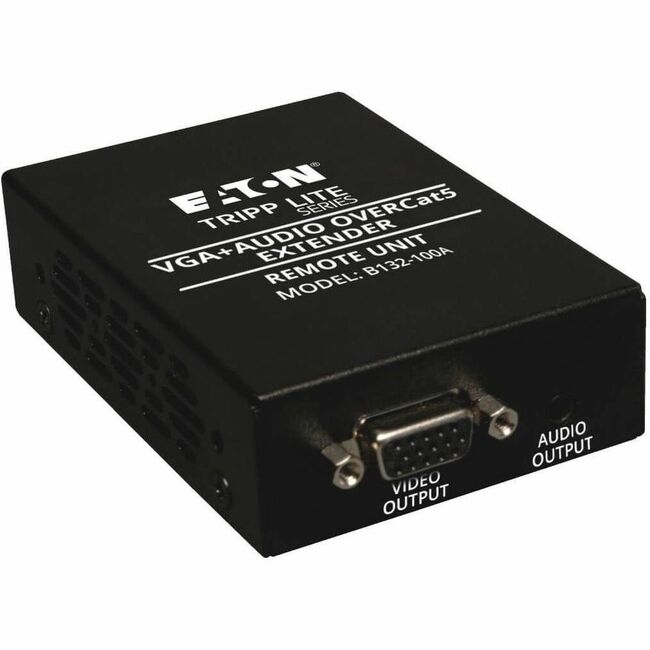

Tripp Lite VGA + Audio Over Cat5/Cat6 Remote Unit Video Extender / Splitter - 1 x 1 - VGA, XGA, SVGA, SXGA, UXGA, WUXGA - 500ft, 1000ft
1 x 1 - VGA, XGA, SVGA, SXGA, UXGA, WUXGA - 500ft, 1000ft
| Number of Output Devices Supported | 2 |
| Transmitter Depth | 3.60" |
| Transmitter Height | 1.10" |
| Transmitter Weight (Approximate) | 7.20 oz |
| Transmitter Width | 2.50" |
| Brand Name | Tripp Lite |
| Certifications & Standards | |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Pole-mountable |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B132-100A |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's B132-100A works with a B132-002A-2 or B132-004A-2 local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft. or a 1024 x 768 (60Hz) Video and Audio signal up to 1000 ft.. 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
| Maximum Operating Distance | 1000 ft |
| Maximum Video Resolution | 1920 x 1440 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - B132-100A TAA/GSA Compliant Video Extender
- Power Supply
- Screwdriver
- Mounting Hardware
- Owner Manual
|
| Product color | Black |
| Product Name | B132-100A TAA/GSA Compliant Video Extender |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 033585530075 037332148773 076246934621 761345435512 818256089386 818273011896 |
