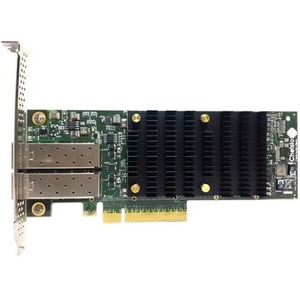

Chelsio 2-port Low Profile 10/25GbE Server Offload Adapter with PCI-E x8 Gen 3, Server Offload. SFP28 connector
| $401.12 Retail $639.00 |
- Full TLS/SSL, DTLS, IPsec and SMB 3.X
- crypto offload
- OVS Offload with OpenFlow support
- DPDK (Data Plane Development Kit)
- EVB, Flex10, VNTag
- PCI-SIG SR-IOV
- PCI Express Gen3 x8
- Integrated media streaming offload
- HW based firewall and NAT offload
- Traffic filtering & management
- IEEE 1588v2 Precision Time Protocol
- Software Compatible with T4 and T5
- Supports x86, Armv8 (Aarch64), IBM
- Power and OpenPOWER Servers
- Low latency user-space I/O
- 4K concurrent offloaded conn. capacity
- Full TCP and UDP offload
- Full iSCSI, FCoE offload
- Full NVMe over Fabrics (NVMe-oF) offload
- Full iWARP RDMA offload
| Buy Once $401.12 | |||
| Subscribe & Save$381.06 | |||
| Delivery Ferquency |
10G/25GbE Unified Wire Adapters for Offloaded TCP, RDMA(iWARP), iSCSI, FCoE, DPDK, NVMe-oF, OvS Offload, Packet Classification & Filtering, Virtualization and more
Product Specifications
| Brand Name | Chelsio |
| Country of origin | Malaysia |
| Device Supported | Server |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Expansion Slot Type | SFP28 |
| Form factor | Plug-in Card |
| Height | 2.7" |
| Host interface | PCI Express 3.0 x8 |
| Length | 6.6" |
| Manufacturer | Chelsio Communications |
| Manufacturer Part Number | T6225-SO-CR |
| Manufacturer Website Address | http://www.chelsio.com |
| Marketing Information | Chelsio's T6225-SO-CR is a dual port 1/10/25Gb Ethernet Server offload Adapter with a PCI Express 3.0 x8 host bus interface optimized for storage cloud computing HPC virtualization and other datacenter networking applications. T6225-SO-CR runs all the host software of its predecessor T5 as-is thus enabling leveraging of all the prior software investment. It offers all the features of T5 and in addition adds support for integrated offload of IPsec TLS/SSL DTLS and SMB 3.X crypto. This adapter based on the sixth-generation (T6) memory free technology from Chelsio provides the highest performance and efficiency dramatically lowers host-system CPU communications overhead and frees up host CPU cycles for useful applications. As a result the system benefits from higher bandwidth lower latency and reduced power consumption. Chelsio memory free variant of the adapters doesn't have any external memory on adapter and can offload a limited number of TOE iSCSI and iWARP connections. Once offloaded connections limit is reached the adapter falls back to host compute cycles without disturbing the network traffic. All other features and functionalities are supported transparently by T6225-SO-CR similar to adapters with external memory on them. All variants of Chelsio adapters leverage single software stack (drivers/firmware/management tools) and support all protocols concurrently. A large portion of offloads enabled by T6225-SO-CR are based on standard TCP IP UDP protocols (such as iSCSI and iWARP) and thus can operate with a software peer or be replaced with a software solution at lower performance thus providing the requisite reliability for enterprise customers and allowing incremental installs in the datacenter. It will work with any legacy switch infrastructure and does not rely on new features such as DCB PFC ETS etc. |
| Media Type Supported | Optical Fiber |
| Network Technology | 25GBase-SR |
| Network Technology | 25GBase-LR |
| Packaged Quantity | 1 |
| Product Name | T6 Dual Port 10G/25GbE Adapter |
| Product Type | 25Gigabit Ethernet Card |
| Total Number of Ports | 2 |
| UPC Alternates | 818278767156 897709002813 |
