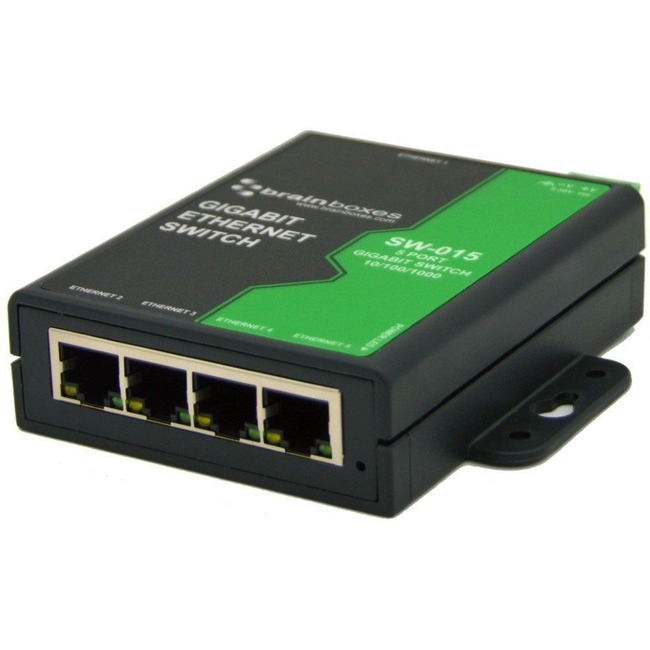

Brainboxes Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
| $84.09 Retail $90.73 |
- 5 Gigabit Ethernet ports
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
- Wide operating temperature range: -10ºC to +60ºC/-14ºF to +140ºF
- Bi-directional data flow at super-fast speed
- Small Footprint Case, only 23mm wide, 94mm deep
| Buy Once $84.09 | |||
| Subscribe & Save$79.89 | |||
| Delivery Ferquency |
5 Ports - 2 Layer Supported - 3.60 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - Lifetime Limited Warranty
Product Specifications
| Total Number of Network Ports | 5 |
| Brand Name | Brainboxes |
| Country of origin | United Kingdom |
| Depth | 4" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Height | 1" |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-015 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Compact 5 port Gigabit Ethernet unmanaged switch. With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet. Backwards compatible; the SW-015 can plug into older networks and connect to devices that are 10Mbs Fast Ethernet (100Mbs) or Gigabit whilst detecting the highest common speed between both ends of the connection. As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF) Connection monitoring automatically powers down devices when not in use for optimum energy efficiency. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Package Contents |
|
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Power consumption | 3.60 W |
| Power source | Power Supply |
| Product Name | Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| UPC Alternates | 837324004366 |
| Weight (Approximate) | 4.55 oz |
| Width | 4.2" |
