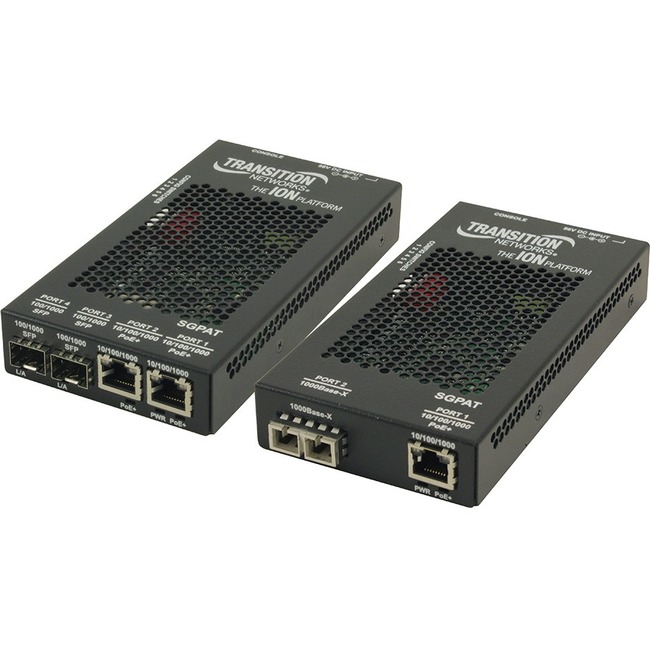

Transition Networks SGPAT1040-305 Transceiver/Media Converter
| $542.27 |
- Wall mount, DIN Rail, or table top
- External AC/DC power supply included
- 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
- Supports full 30 Watts of power to each twisted pair port
- Various fiber versions available supporting fixed SC, LC, and open SFP
- 3-port version offers (1) RJ-45 PoE+ port and (2) open SFP slots, device can be configured as a 3-port switch or as a 2-port media converter with redundant fiber links
- With redundant fiber enabled, supports a 50ms fail-over time
- 4-port version offers (2) RJ-45 PoE+ ports and (2) open SFP slots, device can be configured as a 4-port switch (with or without redundant fiber) or as two independent PoE+ media converters
- SFP slots can support 100Base-FX, 1000Base-X, or SGMII based (MSA compliant) SFP modules
- Supports Auto-Negotiation, Auto MDI/MDI-X, Active Link Pass Through (ALPT), and Remote Fault Detection More Details
| Buy Once $542.27 | |||
| Subscribe & Save$515.16 | |||
| Delivery Ferquency |
2 x Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 x Expansion Slots - SFP - 2 x SFP Slots - Wall Mountable, Rail-mountable, Standalone, Desktop
Product Specifications
| Maximum Distance Supported | 328.08 ft |
| Network (RJ-45) | Yes |
| Number of Total Expansion Slots | 2 |
| Brand Name | Transition Networks |
| Country of origin | Taiwan |
| Depth | 4.8" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Form factor | Desktop |
| Form factor | Rail-mountable |
| Form factor | Wall Mountable |
| Form factor | Standalone |
| Height | 1" |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | SGPAT1040-305-NA |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The SGPAT series is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter which easily and affordably facilitates the connection between different types of network cabling while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port 3-port and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection under-current protection and fault protection input. Active Link Pass Through (ALPT) is supported which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices preventing the media converter from isolating those link failures. During a Link Pass Through event the Auto Power Reset feature will re-set the power to the end PD device ensuring it is ready to go when the LPT event is corrected. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Package Contents |
|
| Power source | AC Adapter |
| Product Model | SGPAT1040-305 |
| Product Name | SGPAT1040-305 Transceiver/Media Converter |
| Product Series | SGPAT |
| Product Type | Transceiver/Media Converter |
| UPC Alternates | 648177041343 |
| Weight (Approximate) | 2 lb |
| Width | 3.3" |
