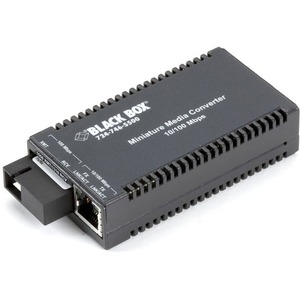

Black Box Multipower Miniature Transceiver/Media Converter - 1 x - 1 x SC Ports - SimplexSC Port - USB - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 1.24 Mile - AC Adapter - DIN Rail Mountable, Rack-mountable
1 x - 1 x SC Ports - SimplexSC Port - USB - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 1.24 Mile - AC Adapter - DIN Rail Mountable, Rack-mountable
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Optic Wavelength | 1550 nm |
| Maximum Distance Supported | 1.24 Mile |
| SC Port Type | Simplex |
| Brand Name | Black Box |
| Country of origin | Taiwan |
| Depth | 3.4" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Rack-mountable |
| Height | 0.8" |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LHC043A-R4 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Autonegotiates for speed and duplex.
- A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable then connect a fiber cable to the converter's other side. That's all there is to it! Best of all you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling they also work as data rate converters performing 10/100 autonegotiation on the twisted-pair port. Choose from multimode duplex single-mode duplex and single-mode single-strand duplex fiber versions. For extra versatility you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter through the optional USB Power Adapter Cable (LHC021A) which plugs into a PC's USB port and is sold separately or through the optional rackmount PowerTray (LHC018A-AC-R2). |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-TX |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - Multipower Miniature Transceiver/Media Converter
- Power Adapter
|
| Power source | AC Adapter |
| Product Line | Multipower Miniature |
| Product Name | Multipower Miniature Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 822088149101 |
| Width | 1.8" |
