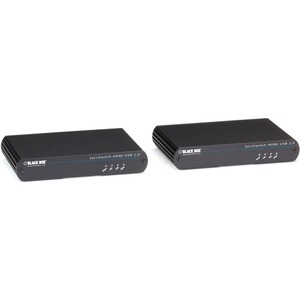

Black Box KVM Extender, HDMI, USB 2.0, Single Access, CATx - 1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 2 x HDMI - 120 V AC, 230 V AC Input Voltage - For PC, Mac, Linux
1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 2 x HDMI - 120 V AC, 230 V AC Input Voltage - For PC, Mac, Linux
| Number of HDMI Ports | 2 |
| Transmitter Depth | 1.20" |
| Transmitter Height | 4.40" |
| Transmitter Width | 6.90" |
| Brand Name | Black Box |
| Certifications & Standards | CE |
| Connectivity technology | Wired |
| Country of origin | China |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Graphic Mode | WUXGA |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 1 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU2500A-R3 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Protect your computer and secure it in a safe place up to 330 feet (100 m) from your workstation connected with a single inexpensive CATx cable. Supports Full HD video and USB 2.0 including control of the keyboard mouse Web cameras Flash drive speakers microphone and other USB 1.1 and USB 2.0 devices.
The ideal high-resolution KVM extender
The ServSwitch™ HDMI with USB 2.0 KVM Extender preserves the quality of the HDMI video signal and offers real-time transmission without the delays and compression that degrades the high-resolution viewing experience. Now you can take full advantage of the high-def video you get with HDMI and extend those signals 100 meters without compromise. It's ideal for use in applications such as high-end medical imaging interactive digital signage home theaters even industrial controls.
USB HID support
The extender supports of a variety of HIDs. Keyboards and mice are the most common HIDs but other devices based on HID protocol including some touch screens will work as well.
DDC read channel
The DDC read capability enables true EDID information to be received from the attached display. This guarantees optimum plug-and-play support. |
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Computers Supported | 1 |
| Number of USB Ports | 6 |
| Package Contents | - Transmitter
- Receiver
- 1 x USB Type A to B Cable
- 2 x 5-VDC Power Supplies
- 2 x 6-ft. Power Cords
- 1 x 6-ft. HDMI Cable
- Rubber Feet
|
| Platform Supported | Linux |
| Platform Supported | PC |
| Platform Supported | Mac |
| Product Line | ServSwitch |
| Product Name | KVM Extender HDMI USB 2.0 Single Access CATx |
| Product Type | KVM Console/Extender |
| UPC Alternates | 822088123620 |
