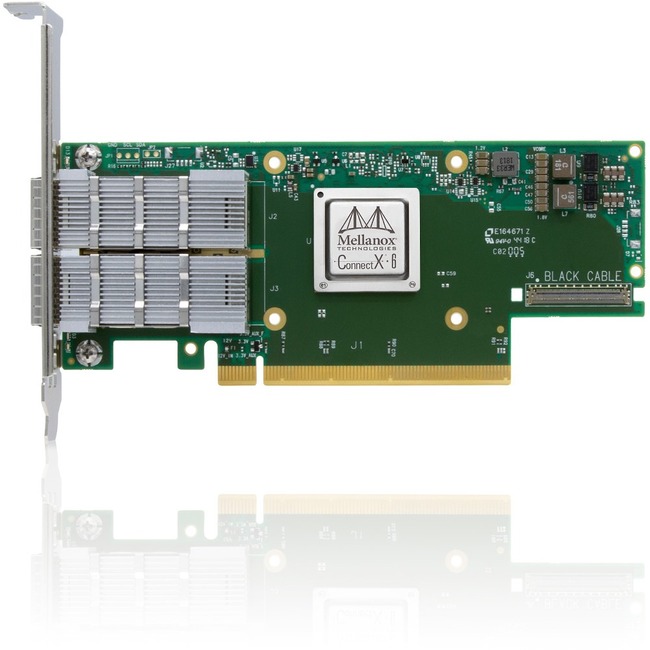

NVIDIA MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE
| $1,891.74 |
- Up to 200Gb/s connectivity per port
- Max bandwidth of 200Gb/s
- Up to 215 million messages/sec
- Sub 0.6usec latency
- Block-level XTS-AES mode hardware encryption
- FIPS capable
- Advanced storage capabilities including block-level encryption and checksum offloads
- Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
- Best-in-class packet pacing with sub-nanosecond accuracy
- PCIe Gen 3.0 and Gen 4.0 support
- RoHS compliant
- ODCC compatible
| Buy Once $1,891.74 | |||
| Subscribe & Save$1,797.15 | |||
| Delivery Ferquency |
PCI Express 4.0 x16 - 2 Port(s) - Optical Fiber - QSFP56
Product Specifications
| Brand Name | NVIDIA |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Expansion Slot Type | QSFP56 |
| Host interface | PCI Express 4.0 x16 |
| Limited Warranty | 1 Year |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MCX653106A-HDAT-SP |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | NVIDIA MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR InfiniBand and 200GbE Dual-Port QSFP56 PCIe 4.0 x16 Tall Bracket (-SP indicates Single Pack) ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity sub-600ns latency and 215 million messages per second ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions ConnectX-6 cards offer a number of enhancements to further improve performance and scalability. ConnectX-6 VPI supports HDR HDR100 EDR FDR QDR DDR and SDR InfiniBand speeds as well as 200 100 50 40 25 and 10Gb/s Ethernet speeds. |
| Media Type Supported | Optical Fiber |
| Packaged Quantity | 1 |
| Product Line | ConnectX-6 VPI |
| Product Name | MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE |
| Product Type | 200Gigabit Ethernet Card |
| Total Number of Ports | 2 |
