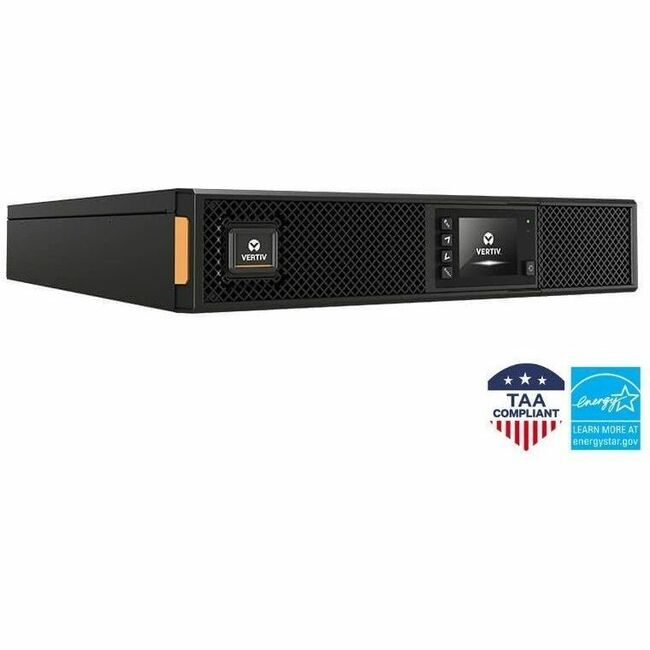

Vertiv Liebert GXT5 TAA UPS - 1500VA/1350W 120V Online 2U Rack/Tower UPS - Double Conversion | 0.9 Output Power Factor | Energy Star 2.0 certified with NEMA 5-15P plug, Colored Graphic LCD, Extended Runtime Capability | 3-Year Warranty with Optional Extended 2-year Warranty
Double Conversion | 0.9 Output Power Factor | Energy Star 2.0 certified with NEMA 5-15P plug, Colored Graphic LCD, Extended Runtime Capability | 3-Year Warranty with Optional Extended 2-year Warranty
| Backup/Run Time With External Battery Cabinet (Full Load) | 25 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 59 Minute |
| Environmental Sensors | Leak Detection Sensor |
| Environmental Sensors | Temperature Sensor |
| Environmental Sensors | Humidity Sensor |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (W) | 1350 W |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Number of External Battery Cabinets | 1 |
| Phase | Single Phase |
| Receptacle Detail | 6 x NEMA 5-15P |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| User Selectable Output | Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3% |
| Utility (AC) Mode Overload | - >200% for 250ms
- 150- 200% for 2 seconds
- 125- 150% for 50 seconds
- 105-125% for 60 seconds
|
| Waveform Type | Pure Sine Wave |
| Additional Information | - Operating Temperature°F (°C):+32 to +104 (0 to 40)
- Storage Temperature°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.
- Relative Humidity:0% to 95% non-condensing
- Audible Noise:
- <46dBA max @ 3 ft. (1m) front and sides
- < 43dBA at 3 ft. (1m) rear
|
| Application/Usage | Mission Critical Equipment |
| Application/Usage | IT Equipment |
| Assembly Required | No |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Battery Characteristics | Valve-regulated Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery life | 5 Year |
| Battery Size | 12V |
| Brand Name | Liebert |
| Certifications & Standards | - UL1778 4th Ed.
- FCC Part 15 Class A
- ANSI C62.41 Cat. B
- ISTA 1A
|
| Circuit Breaker | Yes |
| Cord Length | 10 ft |
| Country of origin | United States |
| Depth | 18.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS 2 |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Form factor | Rack/Tower |
| Height | 3.4" |
| Input current | 12 A |
| Input frequency | 70 Hz |
| Input voltage | 120 V AC |
| Input Voltage Range | 60 V AC - 150 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 1500 VA/1350 W |
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-1500LVRT2UXLTAA |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Liebert GXT5 TAA-compliant online UPS with a capacity of 1500VA/1350W is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure in centralized and edge applications. With online double conversion technology the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power extending battery life and minimizing replacements. It can support a wide range of power environment including 110/115/120V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is Energy Star 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. Add RDU101 SNMP/Webcard for remote management. More from the Manufacturer |
| Maximum Operating Temperature | 104°F (40°C) |
| Number of Batteries | 3 |
| Output current | 1.50 A |
| Package Contents | - GXT5 1500VA 120V UPS
- 4 Post Rack Mounting
- Tower Stand
- USB Cable
- User Guide
- Safety Instruction Manual
|
| Plug/Connector Type | NEMA 5-15P |
| Product color | Black |
| Product Name | GXT5 1500VA 120V UPS |
| Product Series | GXT |
| Product Type | Double Conversion Online UPS |
| Rack Height | 2U |
| Software Included | Free Download - Power Insight 2.2 |
| Status Indicators | Color LCD |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 3 Hour |
| UPC Alternates | 767041038644 |
| Weight (Approximate) | 46.20 lb |
| Width | 16.9" |
