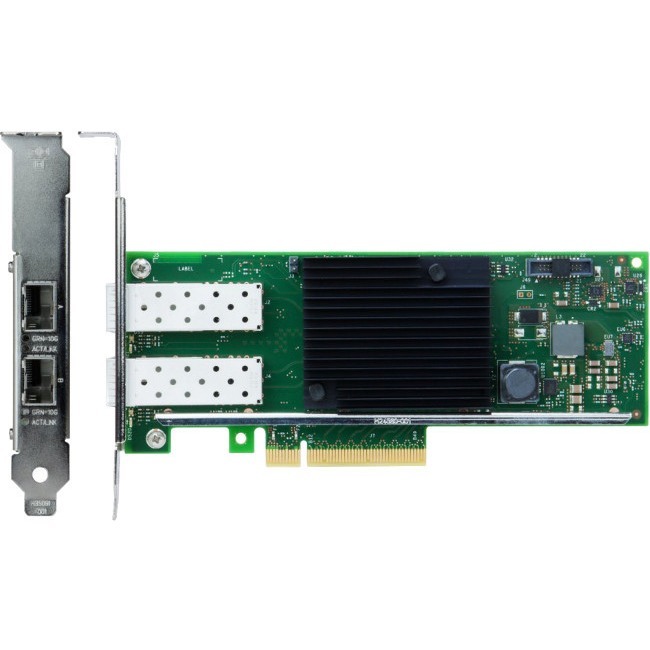

Lenovo ThinkSystem X710-DA2 PCIe 10Gb 2-Port SFP+ Ethernet Adapter
| $333.97 Retail $459.00 |
- VXLAN/NVGRE Hardware Offloads: These stateless offloads preserve application performance for overlay networks. With these offloads, it is possible to distribute network traffic across CPU cores. At the same time, X710 offloads LSO, GSO, and checksum from the host software, which reduces CPU overhead.
- Mobile and cloud application acceleration: Intel's Data Plan Development Kit (DPDK) delivers an open driver where users can fine-tune small packet performance, which delivers line-rate at 128 byte, and near line-rate at 64 byte.
- Low latency: Intel Ethernet Flow Director delivers hardware-based application steering and Intel Data Direct I/O makes the processor cache the primary destination and source of I/O data rather than main memory. Combined, latency is reduced and Intel reports a three-fold improvement in RPS.
- Virtualization performance: With Intel Virtualization Technology (VT), the X710 family of adapters delivers outstanding I/O performance in virtu
| Buy Once $333.97 | |||
| Subscribe & Save$317.27 | |||
| Delivery Ferquency |
PCI Express 3.0 x8 - 2 Port(s) - Optical Fiber - 10GBase-SR - Plug-in Card
Product Specifications
| Brand Name | Lenovo |
| Depth | 6.6" |
| Device Supported | Server |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Expansion Slot Type | SFP+ |
| Form factor | Plug-in Card |
| Height | 0.6" |
| Host interface | PCI Express 3.0 x8 |
| Limited Warranty | 1 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7ZT7A00537 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The new Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization small packet performance and low power; the data center network is flexible scalable and resilient. The X710 is available in three form factors: a standard PCIe low-profile card a Mezzanine LOM (ML2) form factor for ThinkSystem and System x servers and an AnyFabric form factor for ThinkServer systems. The Intel X710 adapters support Intel I/O Virtualization Technology which helps accelerate data and improves application response times. For virtualized environments the X710 adapters offer advanced features with VMDq that lower processor usage and increase I/O performance. Mezzanine LAN-on-Motherboard Generation 2 (ML2) and AnyFabric adapters are cost-effective adapters that offers the flexibility advantages of a PCIe adapter while supporting integrated networking features such as Wake-on-LAN and direct connectivity to the server's service processor for NCSI-compliant out-of-band systems management. |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-SR |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Name | ThinkSystem X710-DA2 PCIe 10Gb 2-Port SFP+ Ethernet Adapter |
| Product Type | 10Gigabit Ethernet Card |
| Total Number of Ports | 2 |
| UPC Alternates | 889488433803 993248722547 |
| Width | 2.7" |
