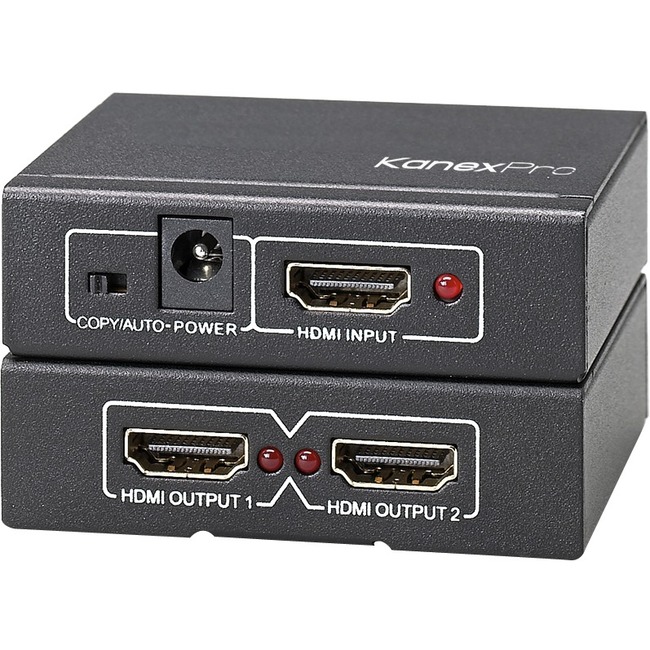

KanexPro 4K UHD HDMI 1x2 Port Splitter

KanexPro 4K UHD HDMI 1x2 Port Splitter

New
KanexPro 4K UHD HDMI 1x2 Port Splitter - 60 Hz to 60 Hz - 1 x HDMI In - 2 x HDMI Out
0 Review(s) Item: SP-HD1X24K | By: KanexPro |  23 In Stock
$35.73 Retail $52.45
  • Split CATV and other signals with this satellite splitter so that it can be used for more than one device
  • Works on 60 Hz maximum frequency for efficient performance
  • Features HDMI input to get connected with the top of the line HDMI supported devices
  • Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
More Details
Subscribe & Save5%
Buy Once $35.73
Subscribe & Save$33.94
Delivery Ferquency

100% Quality & Money Back Guaranteed!


You may be also interested
KanexPro 4K UHD HDMI 1x2 Port Splitter - 60 Hz to 60 Hz - 1 x HDMI In - 2 x HDMI Out
60 Hz to 60 Hz - 1 x HDMI In - 2 x HDMI Out

Product Specifications

HDMI InYes
Product MaterialMetal
Additional Information
  • Distribute high-resolution HDMI signals to 2 Ultra HD displays
  • Supports full 3D and 4Kx2K resolution
  • Supports full HD 1080p (1920 x 1080@60Hz)
  • Computer resolution up to WUXGA (1920 x1200@60Hz)
  • HDCP & CEC compliant Supports
  • Supports latest HDMI High Speed Specifications
  • 12-bit per channel (36-bit all channel) Deep color
  • Compact metal enclosure
  • Signal Inputs/Output:
    • Input DDC Signal: 5 volts p-p (TTL)
    • Maximum Single Link Range: 4K x 2K
    • Output Video: HDMI 1.4 with full 3D and 4Kx2K@30Hz + HDCP
    • CEC - Pass through enabled
  • Operating Frequency:
    • Vertical Frequency Range: 50/60Hz
    • Video Amplifier Bandwidth: 2.97 Gbps
  • Resolutions (HDTV):
    • Interlaced (50&60Hz): 480i 576i and 1080i
    • Progressive (50&60Hz): 480p 576p 720p 1080p and 4Kx2K
  • Power Requirements:
    • External Power Supply: 5V DC@ 1A
    • Power consumption (Max): 5W
Height0.8"
Input voltage5 V DC
Length2.5"
Limited Warranty1 Year
ManufacturerKanexPro
Manufacturer Part NumberSP-HD1X24K
Manufacturer Website Addresshttp://www.kanexpro.com
Marketing Information

The KanexPro 1x2 HDMI Splitter is a 4K@30Hz compliant distribution amplifier which lets you duplicate one HDMI source to 2 displays without losing signal integrity and resolution.

The Ultra HD 4K format on the HDMI splitter ensures astounding picture quality four times the resolution of high-definition 1080p at 30 Hz. This HDCP compliant splitter is also backward compatible with previous HDMI revisions supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today it ensures you'll be ready to take advantage of tomorrow's display technology.

Maximum Frequency60 Hz
Number of HDMI Inputs1
Number of HDMI Outputs2
Package Contents
  • 4K UHD HDMI 1x2 Port Splitter
  • 5V USB to DC Power Supply
  • Operation Manual
Product Name4K UHD HDMI 1x2 Port Splitter
Product TypeSignal Splitter
UPC Alternates813982020047 817218449695 818262845426
Weight (Approximate)10.58 oz
Width2.4"
