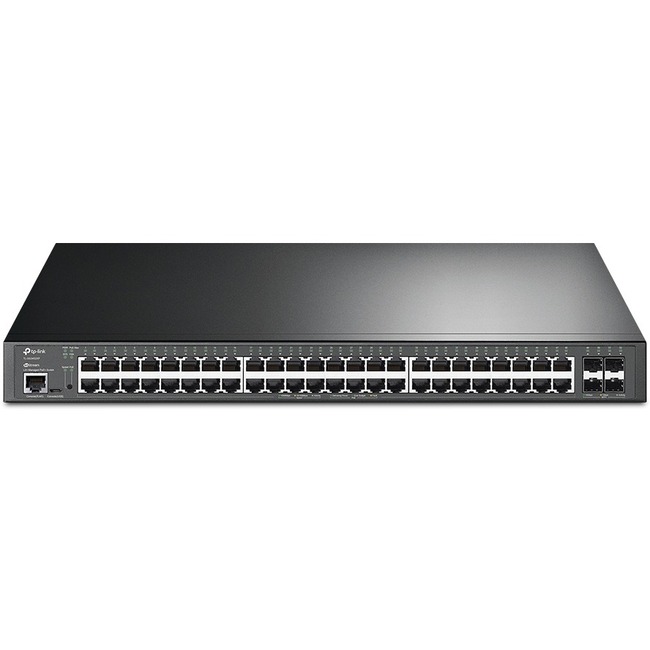

TP-Link TL-SG3452XP - JetStream TL-SG3452XP Ethernet Switch - Limited Lifetime Warranty
| $823.01 |
- 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
- PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
| Buy Once $823.01 | |||
| Subscribe & Save$781.86 | |||
| Delivery Ferquency |
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Power Supply - 49.19 W Power Consumption - 500 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Desktop
Product Specifications
| Number of Total Expansion Slots | 4 |
| PoE Budget | 500 W |
| Total Number of Network Ports | 48 |
| Brand Name | TP-Link |
| Country of origin | China |
| Depth | 13" |
| Environmental Certification | RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 3 |
| Limited Warranty | 3 Year Lifetime |
| Manageable | Yes |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-SG3452XP |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | 10G Uplink Managed Switch with 48 PoE+ Ports for a Complete Omada Network 10G Lightning-Fast Uplink Connection 4× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity PoE+ Output 48× Gigabit PoE+ Ports with Total 500 W Power Budget Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network Advanced L2+ Features Static Routing IGMP Snooping 802.1Q VLAN and More Enterprise Switch with 10G Uplink 4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency so reliable and lightning-fast connections to servers and other switches are easily built. The 48× 802.3af/at compliant PoE+ ports support up to 500 W total PoE power budget.* Designed to use a single Ethernet cable for data and power transmission it offers flexible deployment for PoE-supported devices such as wireless access points IP cameras and IP phones lowering infrastructure costs for small businesses. Software-Defined Networking (SDN) with Cloud Access Omada's Software-Defined Networking (SDN) platform integrates network devices including access points switches and gateways providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided ideal for use in hospitality education retail offices and more.
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network providing a reliable and efficient solution for enterprises campuses and ISPs. Security features include IP-MAC-Port-VID Binding Port Security Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available making it easier than ever to prevent them. In addition the Access Control Lists (ACL L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address IP address TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-X |
| Network Technology | 1000Base-T |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1Q |
| Package Contents |
|
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Power consumption | 49.19 W |
| Power source | Power Supply |
| Product color | Black |
| Product Line | JetStream |
| Product Name | JetStream TL-SG3452XP Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 840030702518 |
| Width | 17.3" |
