Tripp Lite Duplex Singlemode 400Gb Fiber Optic Cable OS2 LSZH CS-UPC LC-UPC 3M
| $27.40 |
- OS2-rated cable recommended for 400 Gb speeds up to 2 km (@ 1310 nm)
- CS connector 40% more dense than standard LC end for easier cable management
- Smaller-format CS end designed for next-generation 400G QSFP-DD transceivers
- Backward compatible with 40/100 GbE networks to facilitate future-proofing
- Yellow LSZH jacket allows fast, easy identification in a crowded switch or patch panel
- This product is covered by a Lifetime Limited Warranty (coverage details)
| Buy Once $27.40 | |||
| Subscribe & Save$26.03 | |||
| Delivery Ferquency |

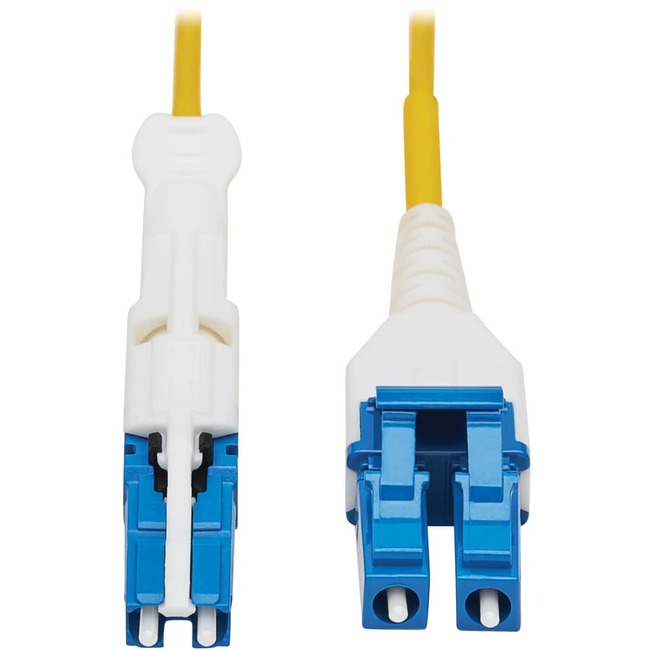

9.84 ft Fiber Optic Network Cable for Network Device, Transceiver, Patch Panel, Network Switch - First End: 2 x CS Male Network - Second End: 2 x LC/UPC Male Network - 400 Gbit/s - LSZH - 9/125 µm - Yellow, Blue
Product Specifications
| Brand Name | Tripp Lite |
| Cable length | 9.84 ft |
| Cable type | Fiber Optic |
| Color | Yellow |
| Color | Yellow Jacket |
| Color | Blue |
| Connector on First End | 2 x CS Male Network |
| Connector on First End | CS Male Network |
| Connector on Second End | 2 x LC/UPC Male Network |
| Connector on Second End | LC/UPC Male Network |
| Core/Cladding Diameter | 9/125 µm |
| Country of origin | China |
| Data transfer rate | 400 Gbit/s |
| Device Supported | Network Switch |
| Device Supported | Patch Panel |
| Device Supported | Network Device |
| Device Supported | Transceiver |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Push-Pull Tab |
| Fiber Optic Mode | Single-mode |
| Jacket Type | LSZH |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N381L-03M |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data Networking As the amount of traffic in data networks grows so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services hyperscale data centers telecom applications and equipment OEM companies. This duplex singlemode 9/125 OS2 cable is an ideal choice for 400G Ethernet applications up to two kilometers (at 1310 nm). It is also backward compatible with 40 Gb and 100 Gb networks so you can future-proof your current application for an eventual upgrade to 400 Gb. Compact CS Connector Designed for the Latest QSFP-DD Transceivers The CS end is 40 percent smaller than a standard LC connector making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand. Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OS2-rated cable has a yellow jacket which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion making it suitable for poorly ventilated areas. It also complies with G657A2 bend-insensitive fiber standards which allows for easy installation without excessive care when storing the fiber due to the increased bend radius. |
| Product Name | N381L-03M 400Gb Duplex Singlemode 9/125 OS2 Fiber Optic Cable Yellow 3 m |
| Product Type | Network Cable |
| UPC Alternates | 037332258021 |
