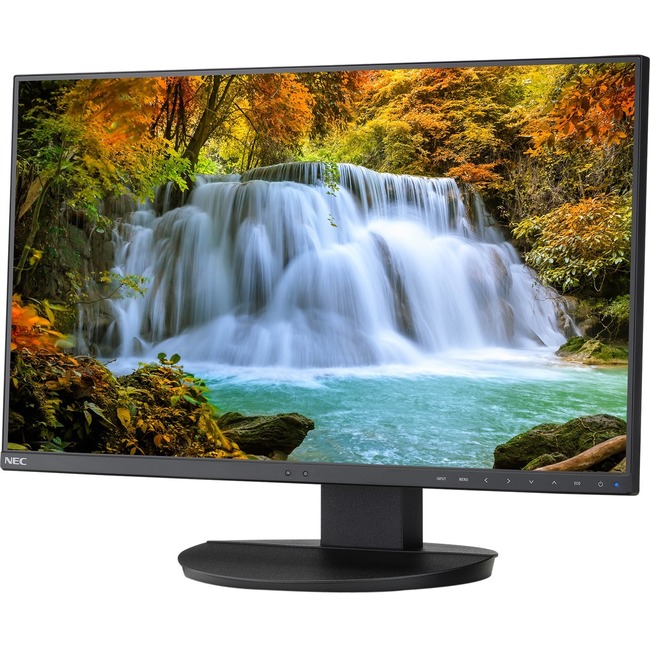

NEC Display MultiSync EA242F-BK 23.8" Full HD WLED LCD Monitor - 16:9 - Black - 24" Class - In-plane Switching (IPS) Technology - 1920 x 1080 - 16.7 Million Colors - 250 Nit Typical - 6 ms - 75 Hz Refresh Rate - DVI - HDMI - VGA - DisplayPort - USB Hub
24" Class - In-plane Switching (IPS) Technology - 1920 x 1080 - 16.7 Million Colors - 250 Nit Typical - 6 ms - 75 Hz Refresh Rate - DVI - HDMI - VGA - DisplayPort - USB Hub
Depth with Stand | 9.80" |
HDCP Supported | Yes |
Height with Stand | 19.20" |
Number of Screens | 1 |
Panel Technology | In-plane Switching (IPS) Technology |
Stand Adjustments | Swivel |
Stand Adjustments | Tilt |
Stand Adjustments | Height |
Stand Adjustments | Pivot |
Vertical Frequency | 50 Hz to 75 Hz |
VESA Mount Standard | 100 x 100 |
Width with Stand | 21.20" |
Aspect ratio | 16:9 |
Backlight Technology | WLED |
Brand Name | NEC Display |
Brightness | 250 Nit |
Built-in Devices | USB Hub |
Color | Black |
Color Supported | 16.7 Million Colors |
Country of origin | China |
Depth | 1.8" |
Dynamic Contrast Ratio | 5000:1 |
Environmental Certification | RoHS |
Environmental Certification | TCO Certified Displays 8.0 |
Environmental Certification | TÜV Rheinland Low Blue Light |
Environmental Certification | ENERGY STAR 8.0 |
Features | Plug & Play |
Features | XtraView+ |
Features | Landscape/Portrait Viewable |
Features | Auto Brightness Control (ABC) |
Features | Display Power Management Signaling (DPMS) |
Features | ControlSync |
Features | Ambient Light Sensor |
Features | Cable Management |
Features | Wide Viewing Angle |
Features | On-screen Display (OSD) |
Features | Eco Mode |
Features | Carbon Footprint Meter |
Height | 12.6" |
Horizontal Frequency | 31.50 kHz to 83 kHz |
Horizontal Viewing Angle | 178° |
Limited Warranty | 3 Year |
Manufacturer | Sharp NEC Display Solutions Ltd. |
Manufacturer Part Number | EA242F-BK |
Manufacturer Website Address | http://www.necdisplay.com |
Marketing Information | The 24" NEC MultiSync EA242F is a Full HD ultra-narrow bezel IPS desktop monitor ideal for corporate environments. Designed for excellent imaging and ideal for multiple monitor configurations this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242F allows for a slimmer profile lighter weight and increased power savings. This model also boasts a 150mm height-adjustable stand and full connectivity with DisplayPort HDMI VGA and USB Type C inputs. The EA242F includes touch-sensitive On Screen Display controls streamlined cable management and ControlSync™ technology which allows users to control up to six units in a multi-monitor configuration. - LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Height-adjust pivot tilt and swivel capabilities add flexibility and comfort to your viewing preferences
- Full connectivity including DisplayPort HDMI VGA and USB Type C inputs
- Touch-sensitive OSD® controls are integrated into the bezel making display adjustments easier than ever
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness thereby conserving power
- Certified Low Blue Light and Flicker Free
- ECO Mode™ allows you to manually adjust the display's brightness to your liking saving power and reducing your energy costs
- dual direction pivot and the image flip feature allow users to arrange the thinnest inactive areas together for nearly seemless images
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit.
|
Maximum resolution | 1920 x 1080 |
Mount Type | Desk Mountable |
Native Contrast Ratio | 1000:1 |
Number of USB Ports | 3 |
Operating Power Consumption | 19 W |
Package Contents | - 24" Full HD Business-Class Widescreen Desktop Monitor w/ USB-C Connectivity
- Setup sheet
- User manual
- Power cord
- DisplayPort cable
- USB cable
- ControlSync cable
|
Pixel Pitch | 11 mil |
Product Line | MultiSync |
Product Name | 24" Full HD Business-Class Widescreen Desktop Monitor w/ USB-C Connectivity |
Product Type | LCD Monitor |
Response time | 6 ms |
Screen Mode | Full HD |
Screen Size Class | 24" |
Standard Refresh Rate | 75 Hz |
UPC Alternates | 805736073959 |
Viewable Screen Size | 23.8" |
Weight (Approximate) | 9.92 lb |
Weight with Stand (Approximate) | 15.43 lb |
Width | 21.2" |
