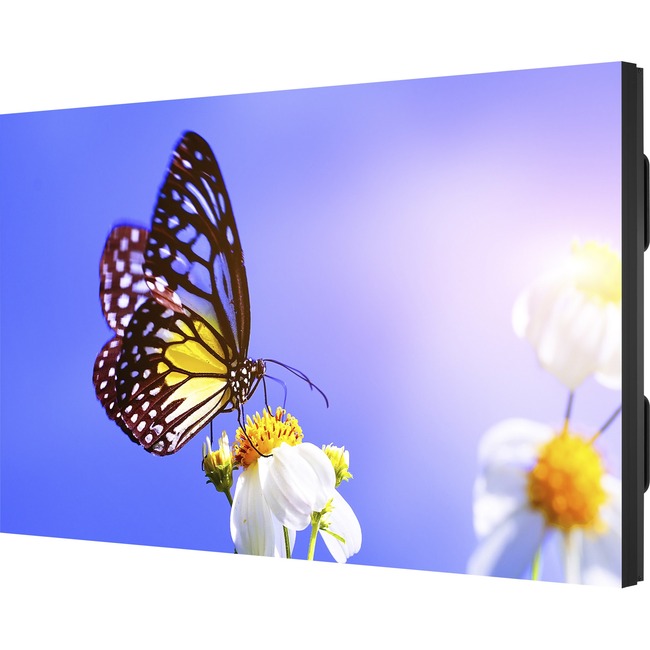

NEC Display 55" Ultra-Narrow Bezel Professional-Grade Display - 55" LCD - 1920 x 1080 - Direct LED - 500 Nit - 1080p - HDMI - USB - DVI - SerialEthernet
55" LCD - 1920 x 1080 - Direct LED - 500 Nit - 1080p - HDMI - USB - DVI - SerialEthernet
| Bezel Width (Bottom) | 50 mil |
| Bezel Width (Top) | 90 mil |
| Number of DisplayPorts | 3 |
| VESA Mount Standard | 400 x 400 |
| Backlight Technology | Direct LED |
| Brand Name | NEC Display |
| Brightness | 500 Nit |
| Depth | 4" |
| Display resolution | 1920 x 1080 |
| Display Screen Type | LCD |
| Ethernet | Yes |
| Height | 27" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Sharp NEC Display Solutions Ltd. |
| Manufacturer Part Number | UN552V |
| Manufacturer Website Address | http://www.necdisplay.com |
| Marketing Information | NEC's 55" UN552V sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for intensity gamma and RGB allows for ideal panel uniformity and an easy out-of-the-box experience. This display is integrated with the proprietary SpectraView Engine which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display received a full chassis upgrade with faster processing times evolved daisy chain performance and new TileMatrixing capabilities all while maintaining the minimal 3.5mm bezel gap. - SpectraView Engine exclusive color processing allows for an unparalleled level of color control uniformity accuracy and stability
- 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength premium-grade panel with additional thermal protection internal temperature sensors with self-diagnostics and fan-based technology allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma intensity and RGB for consistency from display to display
- NEC Display Wall Calibrator MultiProfiler and NaViSet Administrator 2 software compatible.
|
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Package Contents | - 55" Ultra-Narrow Bezel Professional-Grade Display
- Power cord 3.0m
- DisplayPort cable 2.0m
- HDMI cable 2.0m
- LAN cable
- SD Card Cover
- Clamp for Power Cable
- Setup Manual
- Contents Sheet
|
| Pixel Pitch | 19.7 mil |
| Product Name | 55" Ultra-Narrow Bezel Professional-Grade Display |
| Product Type | Digital Signage Display |
| Scan Format | 1080p |
| Screen Size | 55" |
| UPC Alternates | 805736067460 |
| Weight (Approximate) | 61.90 lb |
| Width | 47.8" |
