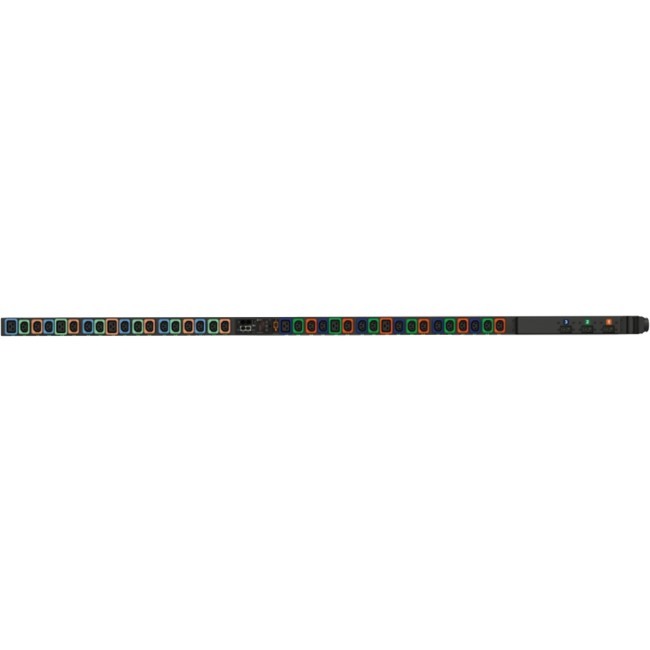

Vertiv Geist PDU - Variable Power Configuration (UPDU) rPDU 16A - 60A C13 C19 11kW Switched
| $2,626.12 |
- UU30009L: 1Phase or 3Phase power, 16A to 48A, 120V to 415V, (30) C13 and (6)C19 outlets, 11kW
- Simplify procurement of UPDU as you can use a single model even with different power source
- Vertiv-patented U-Lock outlets help lessen risk of downtime caused by accidental cord disconnection
- Rest assured your unit meets global compliance tests including - TAA Compliance, RoHS, China RoHS, UL, CE, and RCM
- Receive an extra two years on top of the three-year warranty when you register the Vertiv Geist UPDU within 120 days of purchase
| Buy Once $2,626.12 | |||
| Subscribe & Save$2,494.81 | |||
| Delivery Ferquency |
16A - 60A 100V-415V 1 Phase-3 Phase Outlet-Level Monitoring EC
Product Specifications
| Locking Receptacles | IEC 60320 C13 |
| Locking Receptacles | IEC 60320 C19 |
| Mounting Orientation | Vertical |
| PDU Type | Monitored |
| Phase | Three Phase |
| Power Rating (Watt) | 11 kW |
| Brand Name | Geist |
| Country of origin | United States |
| Energy Star | No |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 72" |
| Input current | 48 A |
| Input voltage | 230 V AC |
| Input voltage | 415 V AC |
| Input Voltage Range | 230 V AC - 415 V AC |
| Length | 2.6" |
| Limited Warranty | 5 Year |
| Management |
|
| Manufacturer | Vertiv |
| Manufacturer Part Number | UU30009L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Geist UU30009L is a versatile rack power distribution unit (rPDU) with a universal input that supports common AC power configurations. It has 30 locking C13 outlets and 6 locking C19 receptacles that deliver a max power capacity of 11kW. The Universal rPDU (UPDU) can accommodate input power ranging from 16A-48A and 120V-415V in both single phase and three phase configurations. It helps simplify the process of the procurement of rPDUs since you can use a single model even if you have different types of power source. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Vertiv Geist UPDU in your network system. The Vertiv-patented U-Lock outlets help secure plug connection and lessen risk of downtime caused by accidental cord disconnection. The Interchangeable Monitoring Device (IMD) on this intelligent rack PDU not only has ports for unit-level remote power monitoring and environmental monitoring but it also provides peace of mind that you can seamlessly update the unit's technology to adapt to your evolving business needs. |
| Mount Type | Rack-mountable |
| Product Model | DUU3EGW1-36PT67-1S02A9K00-S-A |
| Product Name | UPDU UU30009L rPDU |
| Product Series | rPDU |
| Product Type | PDU |
| Protection Type | Overcurrent Protection |
| Protection Type | Double Pole |
| Rack Height | 0U |
| UPC Alternates | 767041029802 |
| Weight (Approximate) | 27 lb |
| Width | 2" |
