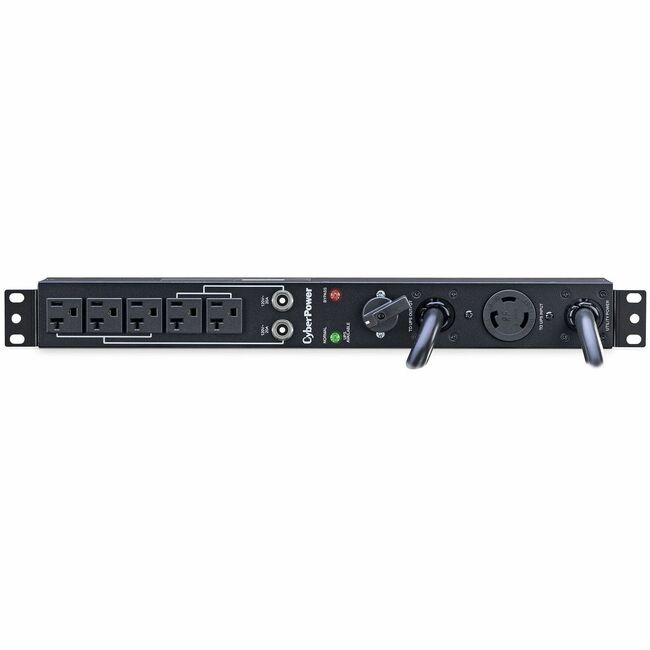

CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU
| $234.67 |
- Maintenance Bypass PDU: Normal mode, Bypass mode
- Amps: 30A (Derated to 24A)
- Volts: 100 - 120 VAC
- Input plugs: 2 NEMA L5-30P plugs (utility, UPS output)
- Total outlets: 5 NEMA 5-20R
- Power cords: 6-ft. utility cord, 3.3-ft. UPS cord
- LED indicators: Normal (Green), Bypass (Red)
- Size: 1U Rackmount
- Dimensions (in.): 17.0W x 2.0H x 3.0D
- UPS mounting hardware: Yes
| Buy Once $234.67 | |||
| Subscribe & Save$222.94 | |||
| Delivery Ferquency |
5 Outlets, 6 ft, 2 x NEMA L5-30P, Horizontal, 1U, 3YR Warranty
Product Specifications
| PDU Type | Hot-swappable |
| Phase | Single Phase |
| Plug/Connector Detail | 2 x NEMA L5-30R |
| Receptacle Detail | 5 x NEMA 5-20R |
| Additional Information |
|
| Brand Name | CyberPower |
| Certifications & Standards |
|
| Cord Length | 6 ft |
| Country of origin | China |
| Depth | 3" |
| Energy Star | No |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 2" |
| Input current | 30 A |
| Input voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | MBP30A5 |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | The CyberPower MBP30A5 a 5-outlet (rear) 1U Maintenance Bypass Power Distribution Unit (MBP PDU) provides 100-120 VAC 30A output (derated to 24A) to 5 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications the MBP30A5 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance replacing batteries or installing a new UPS. A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP30A5 through a dedicated NEMA L5-30R separate from the outlets for connected devices. When the switch on the front of the MBP30A5 is turned from Normal to Bypass or from Bypass to Normal the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active. Rugged industrial-grade metal housing protects the MBP30A5. With a 1U form factor this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP30A5 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product. Power DistributionDelivers AC power to servers equipment and connected devices via a power distribution unit. Maintenance Bypass Qualified personnel can use the bypass feature to disconnect the PDU from the UPS without disrupting power to connected equipment. This feature allows connected equipment to operate seamlessly during maintenance periods battery replacement or UPS installation. Manual Bypass Switch When the Manual Bypass Switch is turned to Normal connected equipment is supplied by UPS output. When the Manual Bypass Switch is turned to Bypass connected equipment is supplied by utility power. Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers equipment and connected devices. 1U Form Factor & Mounting Hardware The 1U form factor is made to be mounted in a standard server rack. Mounting hardware allows the PDU to be connected to a UPS for tower configurations. Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product. Three-Year Limited Warranty Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details. What's In The Box PDU 6-ft. utility cord 3.3-ft. UPS cord 2 Rackmount Brackets 4 Flat Head Screws M4X8L 4 Pan Head Screws M5X12L User Manual Registration Card |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Plug/Connector Type | NEMA L5-30R |
| Product color | Black |
| Product Name | Maintenance Bypass MBP30A5 |
| Product Series | Maintenance Bypass |
| Product Type | PDU |
| Rack Height | 1U |
| Receptacle Type | NEMA 5-20R |
| UPC Alternates | 649532616596 818214631053 818242558018 |
| Weight (Approximate) | 5.90 lb |
| Width | 17" |
