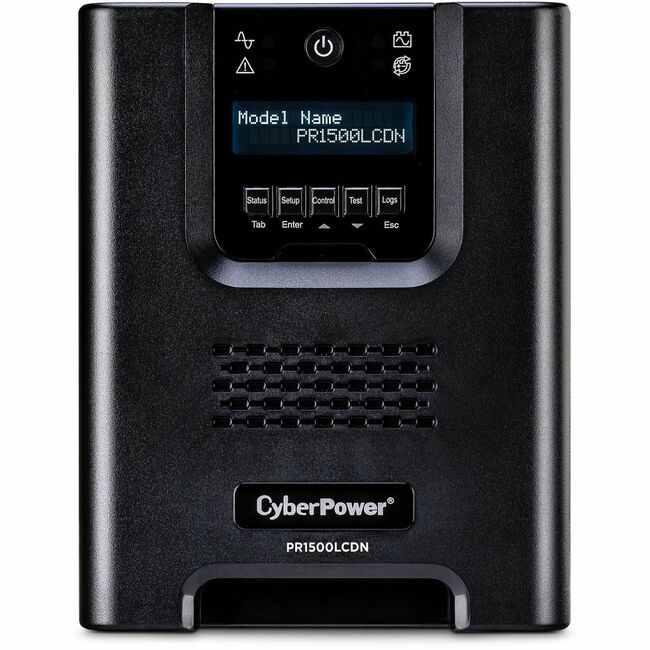

CyberPower PR1500LCDN Smart App Sinewave UPS Systems - 1500VA/1500W, 120 VAC, NEMA 5-15P, Mini-Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $375000 CEG, 3YR Warranty
1500VA/1500W, 120 VAC, NEMA 5-15P, Mini-Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $375000 CEG, 3YR Warranty
| Directly Connected Equipment Guarantee | Lifetime |
| Energy Saving | GreenPower UPS™ Bypass |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Output Frequency | 60 Hz |
| Overload Protection | Yes |
| Receptacle Detail | 8 x NEMA 5-15R |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Waveform Type | Sine Wave |
| Additional Information | - Active PFC Compatible: Yes
- Replacement Battery Cartridge Quantity: 1
- Quick Charge Mode: 3 hours
- User Replaceable: Yes
- Circuit Breaker: 15A
- Adjustable Voltage Range: 75Vac - 154Vac
- Plug Style: Straight
- Automatic Voltage Regulation: Double Boost Single Buck
- Overload Protection: Internal Circuitry Limiting Circuit Breaker
- LCD Control Panel: 41 different settings or status options via the UPS Status menu UPS Setup & Control menus and run Testing/Battery Calibration menus.
- Removable LCD Control Panel Option: Yes - Standard with 4.5 ft
- CableManagement Cable: USB Cable Serial Cable EPO Cable
- Operating Relative Humidity: 0 - 95% (non-condensing)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- CEG Amount: $375000
- Shipping - Dimensions (WxHxD in): 12.5 x 14.25 x 22.75 (in)
- Shipping - Weight (lb): 58.5
|
| Alarm | Low Battery |
| Alarm | Battery Mode |
| Alarm | Replace Battery |
| Alarm | Overload |
| Alarm | UPS Fault |
| Application/Usage | Server |
| Application/Usage | Telecommunication |
| Application/Usage | Network Device |
| Application/Usage | Corporate |
| Application/Usage | Storage Device |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Backup/Run Time (Half Load) | 15.10 Minute |
| Battery capacity | 17000 mAh |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Brand Name | CyberPower |
| Certifications & Standards | - UL1778
- cUL 107.3
- FCC DOC Class A
|
| Country of origin | China |
| Depth | 17" |
| Energy Star | No |
| Environmental Certification | RoHS |
| Form factor | Mini-tower |
| Height | 8.7" |
| Input voltage | 120 V AC |
| Input Voltage Range | 78 V AC - 149 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 1500 VA |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | PR1500LCDN |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | A mini-tower UPS with line interactive topology and a pre-installed SNMP card the CyberPower Smart App Sinewave PR1500LCDN provides battery backup power protection (using sine wave output) and surge protection for corporate servers department servers storage appliances network devices and telecom installations requiring Active PFC power source compatibility. The PR1500LCDN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205 a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed. The PR1500LCDN comes with a three-year warranty and a $375000 Connected Equipment Guarantee. More from the Manufacturer |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP/HTTP Remote Monitoring |
| Number of Batteries | 2 |
| Package Contents | - Smart App Sinewave PR1500LCD 1500VA Mini-Tower UPS
- User Manual
- Emergency Power Off Cable (gray)
- PowerPanel Business Edition Software CD
- Serial Interface Cable (DB-9)
- USB A+B Type Cable
- Warranty Registration Card
- Function Setup Guide
|
| Plug/Connector Type | NEMA 5-15P |
| Product color | Black |
| Product Model | PR1500LCD |
| Product Name | Smart App Sinewave PR1500LCD 1500VA Mini-Tower UPS |
| Product Series | Smart App Sinewave UPS |
| Product Type | Line-interactive UPS |
| Receptacle Type | NEMA 5-15R |
| Software Included | PowerPanel Business Edition |
| Status Indicators | LED Indicators: - Power On
- Online
- On Battery
- Wiring fault
- Replace Battery
|
| Surge energy rating | 1030 J |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 8 Hour |
| UPC Alternates | 649532611881 818240008287 818242415250 818242834853 |
| Weight (Approximate) | 54 lb |
| Width | 6.7" |
