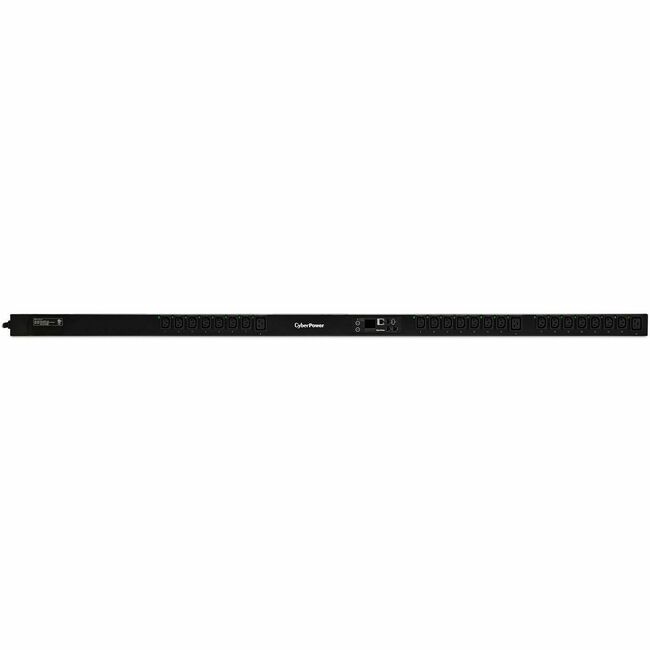

CyberPower PDU41104 Single Phase 200 - 240 VAC 20A Switched PDU - 24 Outlets, 10 ft, NEMA L6-20P, Vertical, 0U, LCD, 3YR Warranty
24 Outlets, 10 ft, NEMA L6-20P, Vertical, 0U, LCD, 3YR Warranty
| Mounting Orientation | Horizontal/Vertical |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Detail | 1 x NEMA L6-20P |
| Receptacle Detail | 21 x IEC 60320 C13 |
| Receptacle Detail | 3 x IEC 60320 C19 |
| Brand Name | CyberPower |
| Country of origin | China |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 65.5" |
| Input current | 20 A |
| Length | 1.9" |
| Limited Warranty | 3 Year |
| Management | - IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
|
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | PDU41104 |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | The CyberPower PDU41104 a 0U rackmount switched power distribution unit (PDU) provides 200-240V 20A output via 21 IEC-320 C13 + 3 IEC-320 C19 receptacles from a single NEMA L6-20P input power plug. The switched outlet receptacles can be managed over the network by using the CyberPower Management Console a web browser and the RJ45 Ethernet port for network connection or locally from the Power Control display. The PDU41104 offers outlets that can be turned on turned off or recycled on demand. Outlets can be programmed to address a number of needs including remote rebooting of locked equipment load shedding power sequencing and locking out unauthorized loads. - Switch-Free Design
- Remote and Local Monitoring
- Automatic Event Notifications
- Network-Grade Plugs and Outlets
|
| Mount Type | Wall-mountable |
| Mount Type | Rack-mountable |
| Output Voltage Range | 200 V AC - 240 V AC |
| Package Contents | - PDU41104 Switched PDU
- 2 x Mounting Brackets
- 6 x (Flat Head M4x5) Bracket Mounting Screws
- 6 x (M5x12) Rack Mounting Screws/Washers
- Cord Retention Tray
- 36 x Cable Ties
- 6 x (M3x6) Cord Retention Tray Mounting Screws
- RJ45/DB9 Serial Port Connection Cable
- 10ft Power Cord IEC-320 C19 to NEMA L6-20P
- Registration and Software Download Cards
|
| Plug/Connector Type | NEMA L6-20P |
| Product Name | PDU41104 Switched PDU |
| Product Series | Switched PDU |
| Product Type | PDU |
| Rack Height | 0U/1U/2U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 649532618668 |
| Weight (Approximate) | 17.20 lb |
| Width | 2.2" |
