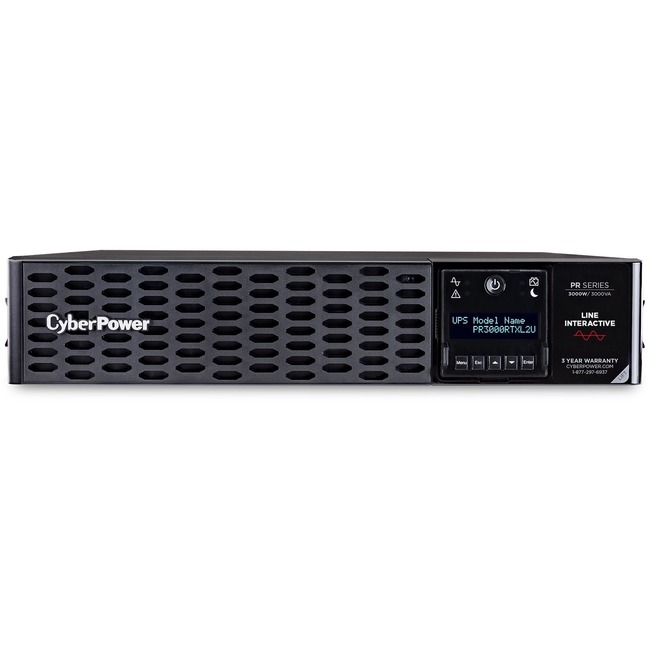

CyberPower PR3000RTXL2U New Smart App Sinewave UPS Systems
| $1,397.12 Retail $1,809.95 |
- Capacity: 3000 VA / 3000 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-120 VAC ± 5%
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlet types: 8 × NEMA 5-20R; 1 x NEMA L5-30R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
| Buy Once $1,397.12 | |||
| Subscribe & Save$1,327.26 | |||
| Delivery Ferquency |
3000VA/3000W, 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Product Specifications
| DC System Voltage | 12 V DC |
| Directly Connected Equipment Guarantee | $400000Lifetime |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Number of Battery & Surge Outlets | 9 |
| Output Frequency | 60 Hz |
| Overload Protection | Yes |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Waveform Type | Sine Wave |
| Additional Information |
|
| Alarm | Overload |
| Alarm | Low Battery |
| Alarm | Over Charge |
| Alarm | Overheat |
| Alarm | Battery Mode |
| Application/Usage | Server |
| Application/Usage | Network Device |
| Application/Usage | Telecommunication |
| Application/Usage | Workstation |
| Application/Usage | VoIP |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Backup/Run Time (Half Load) | 7 Minute |
| Battery capacity | 9000 mAh |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Brand Name | CyberPower |
| Certifications & Standards |
|
| Country of origin | Philippines |
| Dataline Protection | RJ-45 |
| Depth | 19.7" |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Height | 3.4" |
| Input frequency | 63 Hz |
| Input voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 149 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 3000 VA |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | PR3000RTXL2U |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | The PR3000RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology surge protection and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR3000RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR) which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel captive screws for battery panel access and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2U also has an innovative LCD panel that rotates 90° tilts for a better viewing angle and provides information on 47 different settings including UPS stats UPS setup and control management and testing options. This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a $400000 connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to the quality of the PR3000RTXL2U. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP/HTTP Remote Monitoring |
| Number of Batteries | 4 |
| Output voltage | 110 V AC |
| Output voltage | 100 V AC |
| Plug/Connector Type | NEMA L5-30P |
| Product color | Black |
| Product Name | Smart App Sinewave 3KVA Tower/Rack Convertible UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L5-30R |
| Software Included | PowerPanel® Business |
| Sound Emission | 57.5 dB(A) |
| Status Indicators |
|
| Surge energy rating | 2430 J |
| Thermal Dissipation | 35.40 W |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 3 Hour |
| UPC Alternates | 649532620661 |
| Weight (Approximate) | 75.40 lb |
| Width | 17.1" |
